2012 Lexus GS 350 F Sport

nov 012011

Lexus will reveal the all-new 2013 GS 350 F Sport package at the 2011 Specialty Equipment Market Association (SEMA) Show in Las Vegas. Building on the excitement of the fourth-generation GS 350 which was revealed at Pebble Beach in August 2011, the Lexus GS 350 F Sport package was designed to engage driving enthusiasts with factory engineering and the ability to take performance to an entirely new level. Unique to the F Sport package will be aggressive 19-inch wheels, F Sport-tuned Adaptive Variable Suspension (AVS), thicker anti-roll bars, bushing changes, and new larger front brakes with high friction pads. In addition, rear-wheel drive (RWD) models will be equipped with 19-inch staggered width wheels and Variable Gear Ratio Steering (VGRS). Inside, the all-new package also features a sporty attitude with a new 16-way power driver’s sport seat, unique interior design treatment and available F Sport exclusive Cabernet Red leather interior.

“The all-new GS 350 with F Sport package will offer our customers more agility and a sportier appearance,” said Mark Templin, Lexus group vice president and general manager. “The racing-inspired F Sport components were precision engineered for this vehicle, providing quality performance without compromise.”

Engine/Transmission/Drivetrain/Performance

As with the GS 350, the GS 350 F Sport package is powered by an advanced 3.5-liter V6, with four cams, and four valves per cylinder and dual Variable Valve Timing with intelligence. At 306 horsepower, it is one of the most powerful base engines in the segment, as well as the only one with both port and direct injection. It propels the car from 0-60 mph in 5.7 seconds and at the same time, fuel economy has been improved.

Acceleration from 30 to 50 mph can take just 3.0 seconds, and improved engine sound characteristics complement the bolder, more energetic personality of the new GS. The six-speed sequential shift automatic transmission has paddle shifters and sport driving functions as standard equipment.

The transmission incorporates many features adopted from the Lexus IS F high-performance sedan — including faster shifts, and downshift throttle blips — to support four driving modes that can be operated by toggling the Lexus Drive Mode selector. In addition to the Normal mode, the driver can customize the driving experience using ECO, Sport S and Sport S+ modes.

An optional electronically controlled all-wheel-drive system is designed to enhance traction in a variety of driving conditions. The system can vary front-to-rear torque balance from 50/50 to as much as 30/70, depending on driving conditions, for exceptional control.

Chassis/Body/Suspension/Tires/Brakes

To provide a more engaging driving experience, including a new aerodynamic body, a completely new platform with a wider stance and stiffer structure, a transmission with quicker shifts, distinctive engine sound and exhaust notes, and better seat support, Lexus engineers looked to the Lexus LFA supercar for inspiration. The new platform has been designed to be more rigid. Engineers conducted extensive platform testing, ultimately increasing the number of spot welds and adding laser welds in very specific locations. The track, wider by almost two inches, works in combination with a revised suspension design to help ensure a more solid stance and superior cornering performance.

The new suspension system is designed to help guide the 2013 GS through corners with precision. In the front, upper and lower control arms are made from aluminum and employ larger bushings. The rear subframe has been completely redesigned to accommodate an all-new multi-link rear suspension, using improved suspension geometry that helps retain tire cornering force and enhances rear control. With the stiffer platform and lighter components, the shocks can use lighter-viscosity oil, so they move easily and respond to small inputs more quickly.

The use of front and rear aluminum control arms helps reduce unsprung weight and results in significant improvements in agility, roll damping, ride comfort, body control and steering precision. Overall, the suspension is lighter and stronger, allowing it to react to driver input readily, and ride quietly without harshness.

The Lexus GS 350 F Sport package will offer an optional newly developed Lexus Dynamic Handling (LDH) system with Dynamic Rear Steering (DRS) for those seeking more agility. This leading edge platform technology offers Lexus’ first integration of DRS; Electric Power Steering; and Variable Gear Ratio Steering. Monitoring vehicle speed, steering direction and driver inputs, the system calculates the optimum angle for all four wheels. LDH helps to optimize the vehicle slip angle. Using VGRS in the front and DRS in the rear, the system can independently manage both front and rear wheel steering angles to help improve turn-in response, rear grip, vehicle control and overall agility when cornering.

The latest generation of Lexus’ unique Vehicle Dynamics Integrated Management system coordinates Lexus Dynamic Handling; the Anti-lock Braking System; Traction Control; Vehicle Stability Control; and Adaptive Variable Suspension. Adaptive Variable Suspension helps front and rear wheel control and provides agile, sharp and confident driving behavior with a more direct response to the driver’s actions. The LDH system monitors vehicle speed and yaw rate, steering angle and speed, and lateral G to calculate the required rear wheel steering input, to a maximum DRS angle of 2.0 degrees. At most speeds below 50 mph the front and rear wheels turn in opposite directions. In certain conditions at speeds over 50 mph the front and rear wheels turn in the same direction.

Further coordinating DRS with VGRS and AVS, the Lexus Dynamic Handling system will automatically customize the adaptive suspension tuning and active safety systems to suit road conditions, vehicle speed and driving style, giving drivers the confidence to fully utilize the exceptional driving performance of the GS with F Sport package.

The GS 350 RWD with F Sport package will be exclusively equipped with 19-inch staggered width wheels paired with 235/40/19 front and 265/35/19 rear tires, the widest rear tires ever on a Lexus sedan. The wider width wheels allow for a sportier look, and will also help provide added traction. All-wheel drive (AWD) models will be paired with 235/40/19 all-season tires in the front and rear.

Safety/Security Features

As with the GS 350, the GS 350 F Sport package will be standard equipped with 10 airbags, including a knee airbag for both front driver and passenger. Rear seat occupants have seat-mounted side airbags, and all four outboard occupants are equipped with side curtain airbags. Also standard are new Whiplash Injury Lessening front seats designed to help limit excessive head movement, and help decrease the severity of whiplash-type injuries in certain types of rear-end collisions. Standard seatbelts with pretensioners with force limiters used for front and outboard rear seats further assist occupant protection.

Available options to help further enhance occupant safety include a Pre-Collision System, which uses the Dynamic Radar Cruise Control System to provide early warning of certain objects traveling directly ahead that might result in a front-end collision. The system also uses a Lexus-first infrared camera with new scanning technology to monitor the driver’s eyes. In the event that the driver does not appear to be looking forward when a collision appears imminent, the system will initiate the warning at an earlier threshold. If the driver still does not respond and make the appropriate maneuver, the system will initiate braking intervention up to 1.2 seconds prior to impact, helping to lessen the severity of the collision. With available Lexus Dynamic Handling, PCS will help further mitigate the occurrence of a collision.

Other available safety systems include a Night Vision System that enhances driver visibility at night; Heads Up Display; a Blind Spot Monitor that helps detect vehicles in rear/side blind spots; and Lane Keep Assist (LKA) with Lane Departure Warning (LDW). GS is the first in its segment to offer LKA with active steering torque to provide a small amount to assist in maintaining course, while the LDW feature alerts the driver if the system detects that the vehicle is beginning to drift out of the lane.

Exterior Design

The 2013 GS expresses a new generation of Lexus’ design philosophy with its precisely sculpted exterior and will lead the rest of the lineup in an entirely new direction. When designers shaped the GS they visualized the flow of air around it and, like the LFA supercar, maximized aerodynamic efficiency for low coefficient of drag. Following the inspirational design cues of the IS line-up and CT 200h, the F Sport package separates itself from the GS line-up with distinctive exterior details. To display its aggressive attitude, the Lexus GS 350 F Sport package will be outfitted with a sport front bumper and rear lower valence, rear lip spoiler, unique F Sport mesh grille inserts and F Sport badging.

The GS fuses distinctive style with engineering functionality. The signature spindle grille with its trapezoidal contours fully integrates into the aggressive front bumper allowing for efficient airflow. Air inlets located on the outer edges of the lower grille serve as cooling ducts. This distinctive Lexus design feature combined with the deep-set, high-tech headlamps and L-shaped LED daytime running lamps further express the vehicle’s confident and dynamic character. The headlamps use a projector beam design, adding a strong, chiseled appearance and excellent illumination. Fins incorporated into the side of the tail lamps and the design of the trunk area all help direct air over and past the car. The rear bumper underbody area was designed for reduced wind resistance to help keep the car firmly planted on the ground.

From the side, the GS projects the image of a spacious sport sedan with a road-hugging wider stance. The tapered lower rocker panel and the short front overhang give the vehicle a sense of motion. Width-enhancing front and rear wheel arches add an athletic stance-enhancing the vehicle’s dynamic presence.

The rear bumper features a distinctive exhaust diffuser and centered aero fins to help control underbody airflow. Combined with the L-shaped LED tail lamps, a Lexus design cue, these rear bumper features lend a high-performance appearance. Overall, the new GS sheet metal represents a significant extension of the Lexus L-finesse philosophy that is the core of all Lexus product design.

The Lexus GS 350 F Sport package will feature two new colors: Riviera Red and Liquid Platinum, and also be available in Starfire Pearl, Nebula Gray Pearl and Obsidian. Vehicles in Riviera Red will benefit from glass flakes incorporated into the coating that adds a high level of brilliance to the paint. Lexus engineers developed a new advanced coating process for Liquid Platinum exteriors. The GS 350 will be the first Lexus to adopt this new coating technology. Vehicles with the Liquid Platinum exterior will appear more radiant as an additional metallic texture gives both strong shading and defined, sharp highlights. This metallic effect makes subtle and defined bodylines more noticeable and the surface appears finely polished.

Interior Design

To complement the aggressive-looking exterior of the F Sport package, the interior will feature an exclusive design treatment with smooth striated aluminum trim, unique perforated leather trim, black headliner and aluminum pedals. Distinctive F Sport badging will be showcased on the steering wheel. Focusing on the driver, the F Sport package will feature a new 16-way power sport seat for increased lateral support. The driver’s seat will include a Lexus-first with power side bolsters, thigh support, adjustable seatback and four-way lumbar. To complete the uniqueness of the F Sport package, a striking Cabernet Red leather interior will also be available.

Painstaking attention to detail was applied to the GS cabin as well, to create a balance of luxurious and technological amenities and emotional design. The new layout of the long, sculpted dash gives the driver and front passenger a sense of roominess through its clean center stack and new, large high-resolution center control display placed deep near the front windshield. Most of the comfort and convenience controls, such as audio and climate, were relocated to provide a cleaner and more sophisticated dash layout.

The interior includes a number of embedded premium upgrades as standard equipment. A new energy-saving auto climate control system called S-Flow uses the occupant-detection system to focus airflow only to the front area where passengers are actually seated, a first-in-class technology. A next-generation Remote Touch with one-push confirmation is standard on all models and enables smooth, intuitive operations control.

The Remote Touch allows the user to operate the climate, audio, phone controls, optional navigation system and more. The screen menus are selected with the controller, eliminating the need to reach out. Remote Touch also reduces eye movement and helps users operate functions with reduced effort and distraction. A standard rear back-up camera helps add convenience.

The finely crafted cabin detail is complemented further by ambient lighting that unobtrusively welcomes and guides the user into the vehicle, providing a carefully designed experience. New white LED lights are sequentially lit to illuminate the areas around the doors, center console and footwells. A new analog clock with LED indicators, carved from an ingot, adds a unique touch, at once both modern and traditional.

“The GS 350 with F Sport Package will be a distinctive offering of luxury and excitement,” said Templin. “With its dynamic handling, stopping power and true sporty feel this F Sport package will be sure to please our enthusiasts.”

2012 Lexus GS

aug 182011

2012 Lexus GS

Bold and dynamic design featuring the new face of Lexus
Improved driving dynamics
Packed with innovative performance and safety technology
Spacious interior with a contemporary and sophisticated feel

2011, August 18th – Lexus unveiled the new GS at the prestigious Pebble Beach Concours d’Elegance in California on Thursday, 18 August. The car will reach the UK market in 2012. The new GS brings a more engaging driving experience, bolder design and a more spacious, contemporary interior, heralding a new chapter in the history of Lexus.

Starting with the bold spindle grille – set to be a signature feature of future Lexus models – the new GS conveys an air of confidence. This is supported by a redesigned chassis with a wide, strong stance that clearly signals the new GS is designed to inspire and reward driver participation with crisp and precise handling. Lexus engineers challenged themselves to develop a more spacious interior environment for the new GS. Leaving exterior dimensions virtually unchanged, they increased cabin and boot space to create a richly appointed interior that will transport passengers and their luggage in comfort, regardless of distance.

The new Lexus GS will be launched in early 2012, including hybrid and F-Sport versions. For the UK there will be the GS 450h full hybrid and GS 250 petrol engined derivatives. Details will be announced later this year.

A New Personality, An Invitation To Drive

Designing the new GS to be both strong and agile was a key focus of the engineering team. Their main objective was to provide a more engaging driving experience. To achieve this they created a new aerodynamic body, a wider stance and stiffer structure, a transmission with quicker changes and distinctive engine sound and exhaust note.

The revised platform is more rigid compared to the current model thanks to an increased number of spot welds and adding laser welds in very specific locations. The track, wider by 40mm at the front and 50mm at the rear, works in combination with a revised suspension design to give a more assured stance and superior cornering performance.

The new suspension system is designed to guide the GS through corners with precision. In the front, aluminium upper and lower control arms employ larger bushings. The rear subframe has been completely redesigned to accommodate an all-new multi-link rear suspension, the improved geometry enhancing rear-end control. With the stiffer platform and lighter components, the shock absorbers can use lighter-viscosity oil, responding faster to small inputs.

The use of aluminium reduces unsprung weight and results in significantly improved agility, ride comfort, body control and steering precision. Ventilated disc brakes featuring four-piston aluminum front calipers are equipped with the latest electronic enhancements to provide braking balance and control.

Attention To Detail

The precisely sculpted exterior of new GS fuses distinctive style with engineering functionality, expressing a new generation of Lexus’ design philosophy which will be applied to future models. This is evident in details such as the fins incorporated into the side of the tail lamps and the design of the boot area, each helping to direct air over and past the car.

The signature spindle grille with its trapezoidal contours integrates into the aggressive front bumper to allow for efficient airflow. This distinctive Lexus design feature, combined with the deep-set, high-tech headlamps and L-shaped LED daytime running lamps, express the vehicle’s confident and dynamic character. The headlamps use a projector beam design, adding a strong, chiseled appearance and excellent illumination.

From the side, the GS projects the image of a spacious performance saloon with a road-hugging stance. The tapered lower door sills and the short front overhang give the vehicle a sense of motion while width-enhancing wheel arches add an athletic stance, suggesting the vehicle’s dynamic abilities. The rear bumper features a diffuser and centered aero fins to help control underbody airflow. Combined with the L-shaped LED tail lamps, a Lexus design cue, these rear bumper features lend a high-performance appearance.

Even the paint technology has been developed to make subtle bodylines more noticeable and the surface appear finely polished. New colours will benefit from glass flakes incorporated into the coating that adds a high level of brilliance to the paint. Lexus engineers also developed a new coating technology which makes the paint appear more radiant, the additional metallic texture giving both strong shading and defined, sharp highlights.

Spacious Interior with Premium Upgrades

Painstaking attention to detail has been applied to the GS cabin to create a balance of luxury, technological amenity and emotional design. Focused around the driver and the driving experience, it also provides more space for all occupants, increasing the comfort of both front and rear passengers. The new layout of the long, sculpted dash gives the driver and front passenger a sense of roominess through its clean centre stack and large high-resolution display screen. Most of the comfort and convenience controls such as audio and climate are relocated to provide a cleaner and more sophisticated dash layout.

A redesigned seat frame and changes to the steering column give increased comfort and better forward visibility to the driver. Revised door openings offer easier entry and exit and boot access is improved with a wider, deeper opening. Luggage capacity has been increased by almost 25 per cent.

The interior includes a number of embedded premium features as standard equipment. A new energy-saving auto climate control system called S-Flow uses the occupant-detection system to focus airflow only to the front area where passengers are actually seated, a first-in-class technology. A next-generation Remote Touch with one-push confirmation is standard on all models and enables smooth, intuitive operation of climate, audio and phone controls as well as use of the navigation system and more. A standard reversing camera helps add security and convenience.

The finely crafted cabin detail is complemented by ambient lighting that unobtrusively welcomes and guides the user into the vehicle, providing a carefully designed experience. New white LED lights are sequentially lit to illuminate the areas around the doors, centre console and footwells. A new analogue clock, carved from an ingot, adds an unexpected touch. Cabin materials include three types of wood and meticulously detailed contrast stitching is used as a visual accent around the interior to create a rich, tailored interior space.

Integrated Safety Systems

In addition to enhanced braking systems and an impact-absorbing body structure, the new GS offers significant advances in both passive and active safety systems as standard equipment. Among the class-leading 10 airbags in the new GS, there are knee airbags for both driver and front passenger. Rear seat occupants have seat-mounted side airbags, and all four outboard occupants are equipped with side curtain airbags.

New Whiplash Injury Lessening (WIL) front seats increase the likelihood that occupants will be in the optimum position at the moment of impact, enhancing the protective effect of the seatbelt system. Standard seatbelts with pretensioners with force limiters used for front and outboard rear seats add to occupant protection.

Options include a pre-collision system, which uses the dynamic radar cruise control system to provide early warning of upcoming objects that might result in a collision. The system also uses a first-in-class infrared camera to monitor the driver’s eyes. If the driver is not looking forward when a collision appears imminent, the system will sound a warning sooner than otherwise. If the driver still does not respond and make the appropriate manoeuvre, the system will initiate braking up to two seconds prior to impact, helping to lessen the severity of the collision.

Other available safety systems include a Night Vision System that enhances driver visibility in the dark; Head-Up Display (HUD); a Blind Spot Monitor that helps detect vehicles in rear/side blind spots; and Lane Keep Assist (LKA) with Lane Departure Warning (LDW). GS is the first in its segment to offer LKA with active steering torque to provide a small assistance in maintaining course, while the LDW feature alerts drivers if they begin to drift out of their lane.

Seamless Connectivity

Next-generation Lexus multimedia brings a host of standard entertainment and connectivity enhancements, including enhanced Bluetooth® capability with automatic phonebook download and streaming audio. GS drivers will get DVD audio and video compatibility, MP3 sound enhancement, 5.1 Surround Sound, and a high-resolution eight-inch central control display centrally located high up in the instrument panel.

Cars fitted with the navigation system will have an industry-first 12.3-inch high-resolution multi-media screen, large enough to support simultaneous, split-screen viewing of a large map display, plus audio, climate or other vehicle information.

For the ultimate in audio performance, an 835-watt, 17-speaker Mark Levinson audio system is available. The system provides 7.1 Surround Sound through 10 channels using a new class D Digital amplifier and efficient Green Edge™ speakers that are lighter, more energy-efficient and have less distortion. The new system produces almost three times as many watts per channel versus the previous generation.

2012 Lexus LFA

aug 152011

[Show as slideshow]

[View with PicLens]

2011 Lexus LX 570

aug 142011

2011 Lexus LX 570

LX 570 Luxury Utility Vehicle – Standard With Legendary Capability
• Powerful V8 has 7,000-lb. Towing Capacity
• Blends Premium Luxury and Off-Road Ability
• Standard New Brake Override System

The eight-passenger LX 570 continues to be the ultimate premium luxury utility vehicle for daily driving or conquering off-road challenges with its smooth and quiet ride. For the 2011 model year, the powerful LX 570 receives a standard brake override system, updated interior colors, and additions to the available Luxury Package. The Costa Azul Mica exterior is discontinued.

The LX 570 receives standard a brake override system, Smart Stop Technology, as an additional measure of consumer confidence. The braking system enhancement will automatically reduce engine power when the brake pedal and the accelerator pedal are applied simultaneously under certain driving conditions.

The premium LX 570 features a comfortable interior complemented by leather and wood trim. Inside for 2011, Black leather trim replaces Gray, while Golden Bird’s-eye Maple wood trim replaces Medium Brown Walnut wood trim. In addition, a heated steering wheel enhances the amenities of the available Luxury Package.

Engine/Transmission/Drivetrain/Performance
The LX 570′s 5.7-liter V8 delivers the punch and towing power demanded in this segment. The powerplant produces 383 horsepower at 5,600 rpm and peak torque of 403 lb.-ft at 3,600 rpm. Crucial to LX customers who tow with their vehicles, 90 percent of peak torque is available at just 2,200 rpm.

The V8′s advanced Dual Variable Valve Timing with intelligence (VVT-i) system controls valve timing and overlap on both the intake and exhaust valves, which helps to optimize power, fuel efficiency and emissions. The Acoustic Control Induction System (ACIS) switches the length of the intake tract in two stages, based on rpm and throttle angle, to improve torque across the engine speed range. Tubular stainless steel headers flow into a full stainless steel exhaust system.

The LX 570′s six-speed automatic transmission is designed to handle high torque while performing with Lexus quietness and smoothness. The electronically-controlled transmission’s control unit estimates road conditions and predicts the driver’s intention to select the appropriate gear ratio for the vehicle’s speed and the driving conditions. A sequential shift mode allows the driver to select gears manually. Even at very low speeds, such as trail driving, the transmission operates smoothly and imperceptibly.

The LX 570′s transfer case provides full-time four-wheel drive that is equally adept at handling the rigors of slippery winter weather or deep mud or snow. A 2.62:1 low-range ratio is available for challenging driving surfaces. The system uses a TORSEN® limited-slip locking center differential to distribute power 40:60 front-to-rear, directing more power to the wheels with the best grip should slippage occur. Four-wheel Active Traction Control (A-TRAC) employs both brake and throttle intervention to help control wheel spin. Vehicle Stability Control (VSC) helps maintain directional control during cornering and can be disengaged via the “TRAC off” switch.

The Crawl Control feature provides improved throttle modulation when maneuvering over rough, uneven or difficult surfaces. When the transmission is shifted into low range, Crawl Control regulates engine speed and output, along with braking force, to propel the vehicle forward or in reverse at one of three low-speed settings. Crawl Control also actuates a set of virtual locking differentials to help reduce tire slippage and optimize chassis behavior.

Without canceling Crawl Control mode, the driver can reduce vehicle speed by braking or adjust the crawling speed with a selector switch. Hill-start Assist Control (HAC) helps provide additional control for off-road driving by helping to keep the vehicle from rolling back while starting on a steep incline or slippery surface.

Chassis/Body/Suspension/Tires/Brakes
The LX 570’s highly capable chassis is equipped with an advanced suspension system. Body-on-frame construction provides ruggedness and durability in extreme driving conditions, plus impressive ride isolation characteristics and a 7,000-pound towing capability. An electro-hydraulic system with four-wheel Active Height Control (AHC) and Adaptive Variable Suspension (AVS) reacts more quickly and allows for a greater range of adjustment than the system used in the previous generation LX.

Applying advanced computer aided engineering and lightweight components, engineers developed a frame structure that uses lightweight, high-strength steel. The frame was tested over some of the worst roads in Australia, plus desert areas of the U.S. and other parts of the world in conditions where other SUVs could not go. The body utilizes welded high-strength sheet steel, especially in the A-, B-, C- and D-pillars and in the rocker area to reduce weight and increase rigidity.

The high-mount, independent double-wishbone front suspension allows for nine inches of total front wheel travel – four on the jounce stroke and five on rebound – for outstanding articulation over rough roads and obstacles. The power-assisted rack-and-pinion steering uses a variable gear ratio that requires just 2.4 turns to go from lock-to-lock.

The four-link trailing-arm rear suspension retains the solid-axle configuration for strength and durability. Suspension geometry helps promote control, and spring and damper rates are optimized for ride smoothness. The new-generation Lexus LX 570 introduced a vehicle “posture control” system with Lexus advanced technology, including Four-Wheel AHC + AVS (Active Height Control + Adaptive Variable Suspension).

The LX 570 suspension system helps enhance on-road handling by reducing body sway by more than 30 percent compared to the previous generation and by suppressing dive and squat during cornering, braking or acceleration. The compression chambers of the shock absorbers are diagonally linked (front left shock linked to rear right, and front right linked to rear left) by a center-control valve. Passing small body motions from front-to-rear increases overall vertical suspension damping. A spring-rate switch control in the front shock absorbers stiffens or loosens the air spring rate in two steps. When cruising on the highway, for example, the spring rate is loosened for better ride comfort.

The Active Height Control system lowers the chassis by about two inches for easy entry and exit and returns automatically to its normal height when the vehicle begins to accelerate. Vehicle height automatically lowers within two seconds of switching off the ignition when the vehicle is stopped. An Easy Access mode allows the driver to also lower the vehicle while it is parked. For improved aerodynamics, the AHC system lowers the vehicle by nearly one inch in front and by a little more than a half inch in the rear at highway speeds. When the transfer case is shifted into low range, AHC raises the vehicle by approximately three inches to provide additional ride height in driving situations where chassis clearance is at a premium.

The Adaptive Variable Suspension system responds to the different inputs and spring rates, and it adjusts the shock absorber damping force to provide optimal handling and comfort for on-road or trail driving. AVS provides three modes to control the spring rate and shock absorber damping force.

Comfort mode provides a softer response on extremely bumpy roads, while the Normal and Sport modes help provide increasingly greater levels of control for driving a heavily loaded vehicle, driving at higher speeds on paved roads, or driving on unpaved roads.

The standard ten-spoke, 20-inch alloy wheels wear 285/50R20 tires. A direct tire pressure monitor system notifies the driver of a critical drop in air-pressure in any of the tires, including the full-size spare tire.

The LX 570′s brake system utilizes 13.4-inch ventilated discs and four-piston calipers up front and 13.6-inch ventilated discs at the rear. The multi-terrain ABS system determines road-surface conditions and automatically optimizes lock-up control, selecting the suitable ABS profile for on- and off-road driving surfaces. Electronic Brake-force Distribution (EBD) employs the ABS to properly balance braking forces between the front and rear wheels, while Brake Assist (BA) provides auxiliary force to assist the driver during emergency braking.

Safety/Security Features
The front of the LX 570 frame integrates a three-stage crush structure to help reduce frame damage to other areas of the vehicle in certain severe frontal impacts. The patented design can disperse collision force from the main side members to the floor frame members, helping to reduce deformation in the passenger compartment.

The LX 570 is equipped with 10 standard airbags, including driver- and front-passenger knee airbags, front and second-row seat-mounted side airbags in the outboard seating positions, and side curtain airbags for all three rows. All eight seating positions feature three-point seatbelts. The second-row seatbelts integrate pre-tensioners for the outboard seats and an ELR (Emergency Locking Retractor) seatbelt for the center seat.

The LX 570 was the first vehicle in its class to use Active Front Headrests which move up and forward almost instantly in the event of certain rear-end collisions when the force of the occupant’s body is applied to the seat back. The standard dual-swivel Adaptive Front lighting System (AFS) helps to illuminate a turn or curve as the driver steers into it.

The LX 570 was also the first in its class to offer available Pre-Collision System with Dynamic Radar Cruise Control. In addition, LX 570 was the first Lexus to offer the optional Wide-view Front and Side Camera feature designed for use in tight settings, such as parking garages. With cameras located within the front grille and under the passenger outside mirror, the driver can check hard-to-view areas by simply pressing a button on the dashboard and viewing the camera images on the standard navigation system screen. The Wide-view Front and Side Camera functions up to a vehicle speed of about 7.5 mph and displays the front and side views simultaneously in split-screen mode.

Luxury/Comfort/Convenience
The standard power rear door, Smart Access keyless entry system with push-button start, headlamp washers and a front windshield wiper deicer provide all-weather convenience. A full array of standard luxury amenities includes four-zone independent climate control, front-seat power-seat cushion extenders, a rear back-up camera, Lexus Navigation System and nine-speaker Lexus Premium Sound system with iPod/USB connectivity.

The Lexus Premium Sound System features an integrated XM Radio receiver, iPod®/USB connectivity and streaming music via Bluetooth®. When connected to the USB port, the iPod can be controlled through the audio system or steering wheel controls, while information such as names for the artist, track and album is displayed on the navigation screen.

The Lexus Navigation System includes a telematics system, Lexus Enform® with Safety Connect® (includes complimentary one-year trial subscription), Voice Command casual-language voice recognition and Bluetooth® phonebook download. The LX 570 is also factory ready for subscriptions to a variety of innovative XM services including XM NavTraffic®, XM NavWeather™ and XM Sports and Stocks services. XM services require separate XM subscriptions. The XM Sports and Stocks service is included with an XM Radio subscription. All XM services offer complimentary 90-day trial subscriptions.

With 28 total air vents, the climate control system is designed to bathe occupants in comfortable air, even during extreme heat, rather than simply project streams of cool air at them. For colder weather, the LX 570 is equipped with an auxiliary Positive Temperature Coefficient (PTC) heater. The PTC heater warms air by passing it over an electrically heated ceramic element.

Luxury Options
The LX 570 offers an optional Luxury Package that includes a cool box for beverages; semi-aniline leather-trimmed upholstery; an African Bubinga wood-trimmed shift knob, heated steering wheel and rear center console lid; heated and ventilated front seats and heated second-row seats; Smart Access and Liquid Graphite finished wheels.

In addition to the Luxury Package, the LX 570’s option list includes climate-controlled front seats and heated second-row seats, and an entertainment system. The available rear-seat entertainment system, with 3D icons and LED backlight, plays DVDs and uses a nine-inch wide-format screen.

For audiophiles, a 19-speaker Mark Levinson® Reference Surround Sound audio system is also available with 450-watts maximum power and 15 channels.

Exterior Design
The LX 570 luxury utility vehicle adopts characteristics of the brand’s L-finesse design theme. A wide stance and muscular cabin proportions are accented with subtle character lines and luxury touches such as chrome-plated door handles and moldings. The wide grille, with its “arrowhead” corner treatment, character lines integrated into the bumper, and large projector headlights convey a distinctly purposeful look. Pronounced wheel arches add an element of ruggedness to the elegant profile. Standard running boards fit closely to the body for an integrated appearance.

Wide rear combination lights emphasize the large size of the sculpted rear door. They employ high-intensity LEDs and a specially designed diffusion pattern to project “radiance” and to give drivers following behind ample visibility of the LX 570. Tasteful chrome accents set off the lights and the license plate surround.

Interior Design
The LX 570, while occupying the same footprint as the previous LX 470 model, provides ample front seat legroom. The result is an even more inviting and comfortable space for up to eight passengers and their cargo. Optitron® instrument gauges are a traditional and functional Lexus design feature.

The first-in-class standard power-sliding second-row seat slides forward and aft 4.1 inches for passenger comfort and cargo storage versatility. The second-row seatbacks provide a convenient 40/20/40 split. The second row seat is specially engineered to make tumbling it forward easy for anyone – with Lexus fluid smoothness. A power retractable third-row seat is standard. The split rear tailgate features a power upper door, while the bottom section raises and lowers with minimal effort.

Warranty
All new Lexus vehicles come with a 48-month/50,000-mile basic limited warranty with roadside assistance for 48-months/unlimited miles. Powertrain and restraint system coverage is provided for 72 months/70,000 miles. Corrosion perforation protection is covered for 72 months, regardless of mileage.

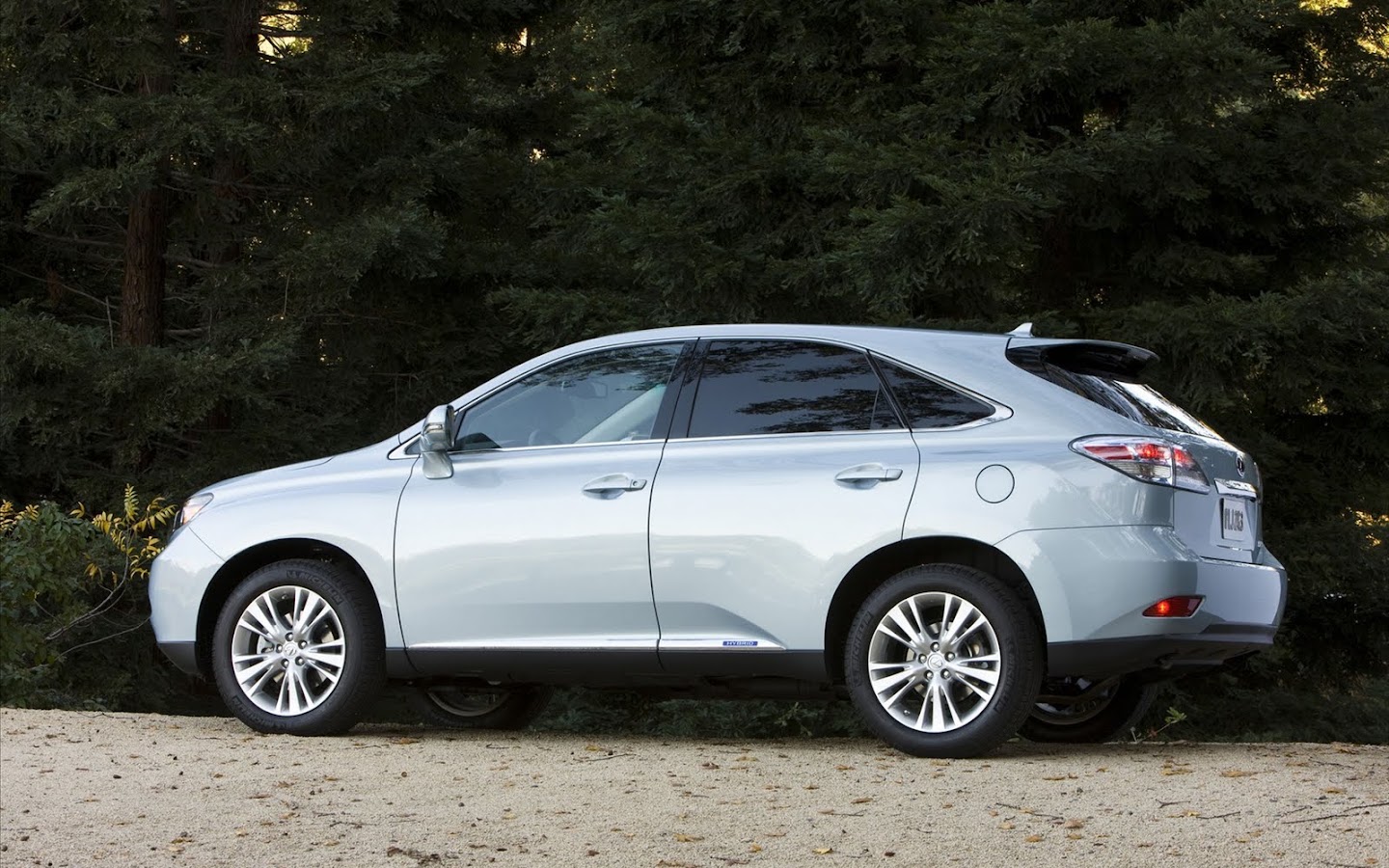

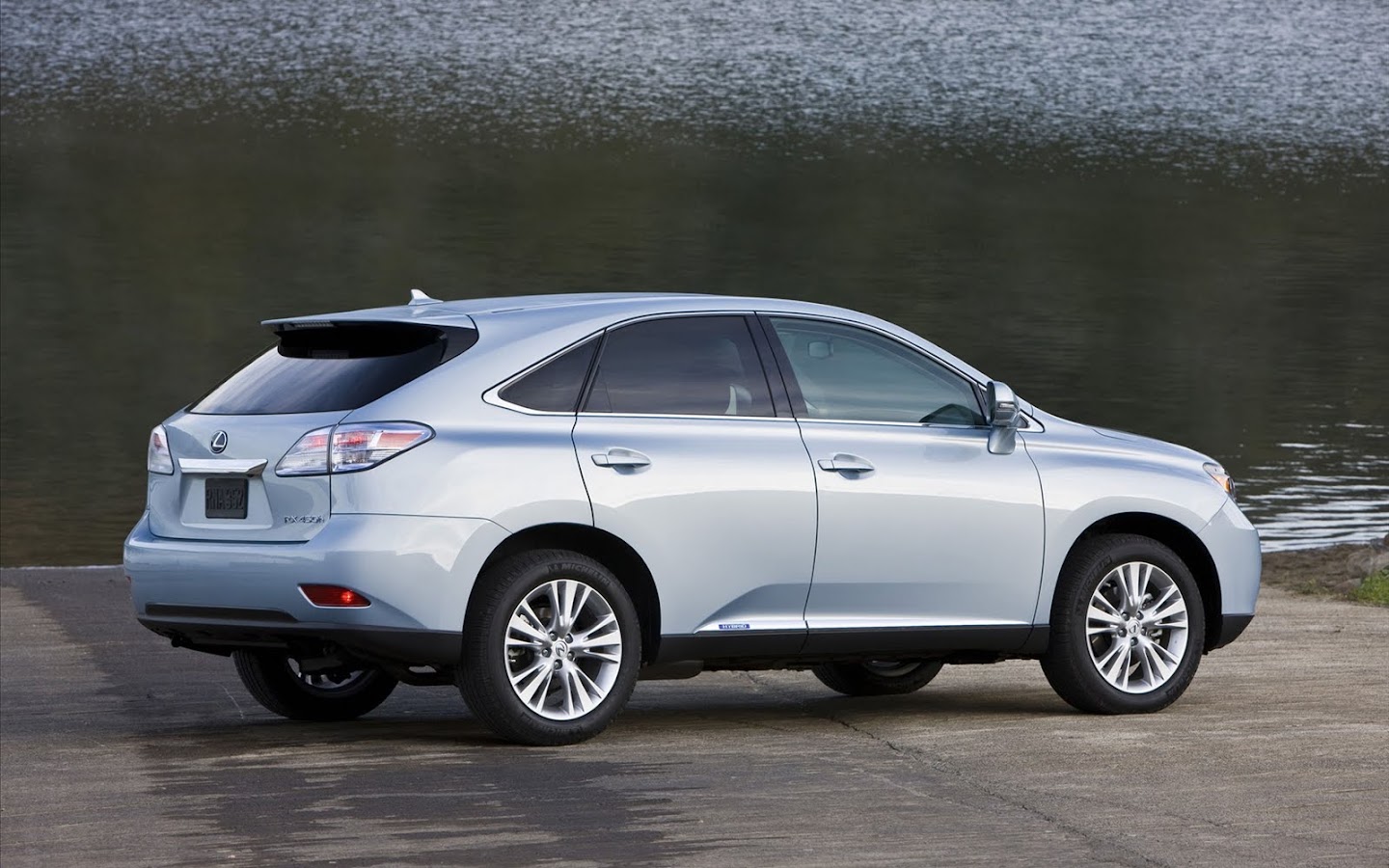

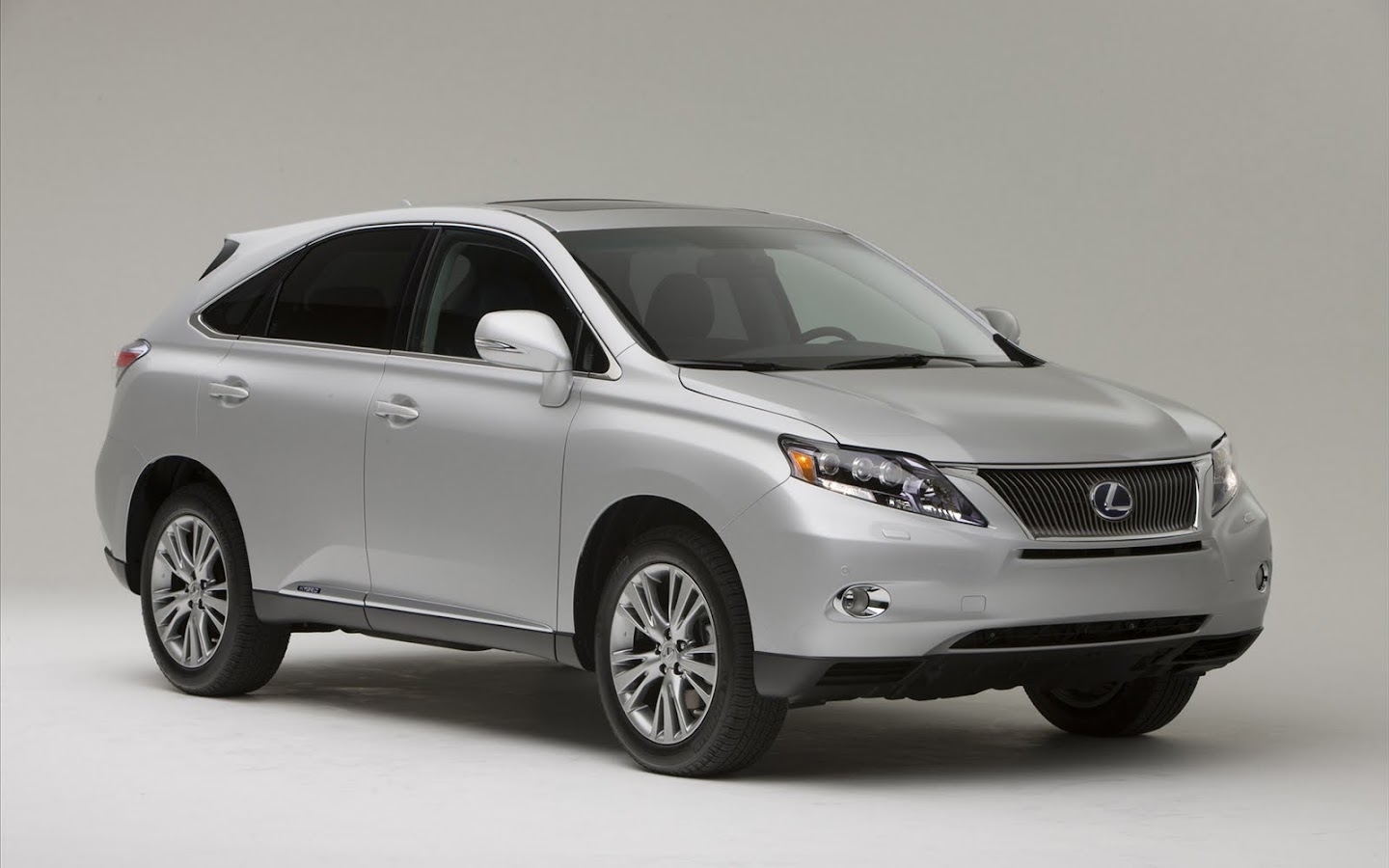

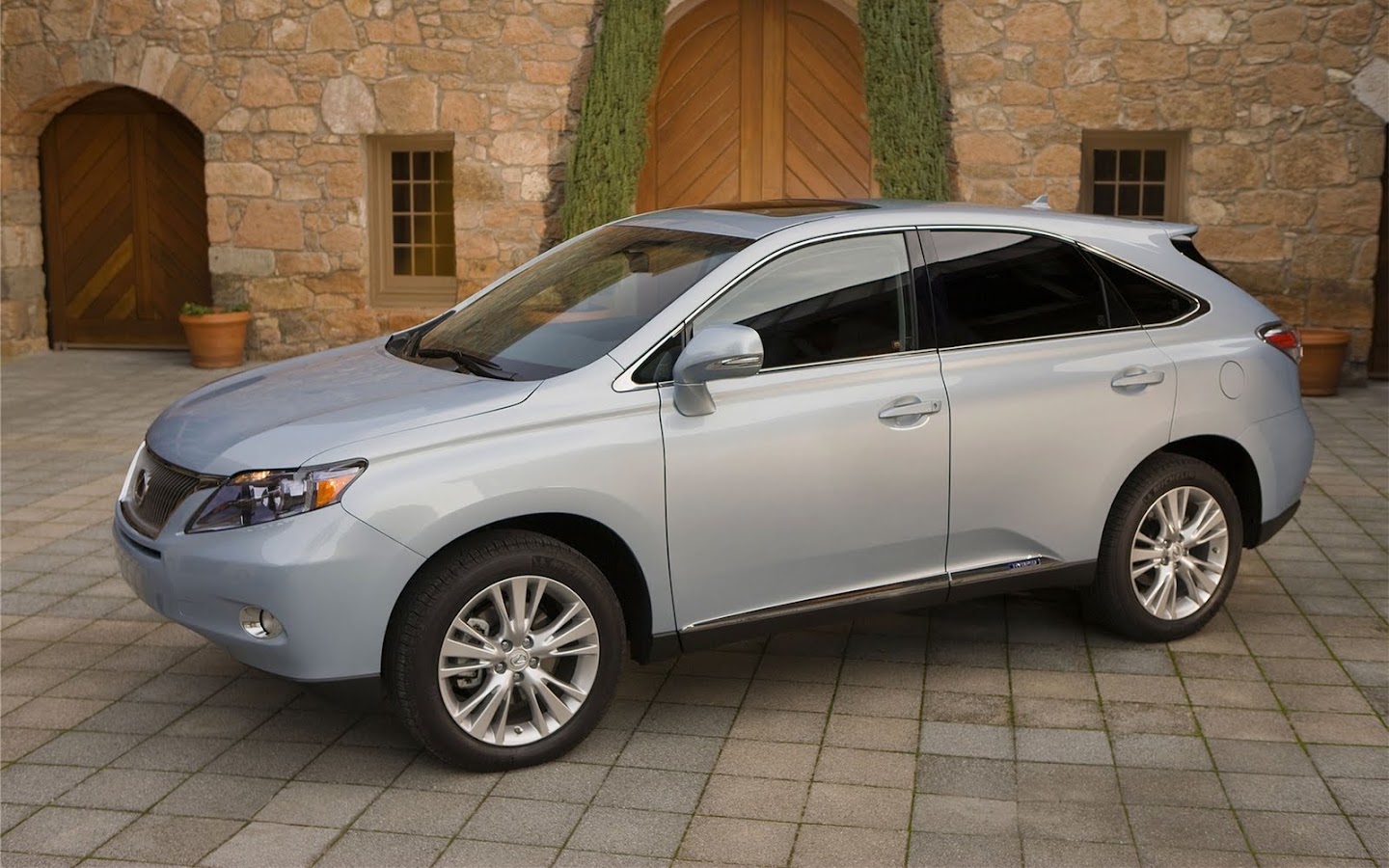

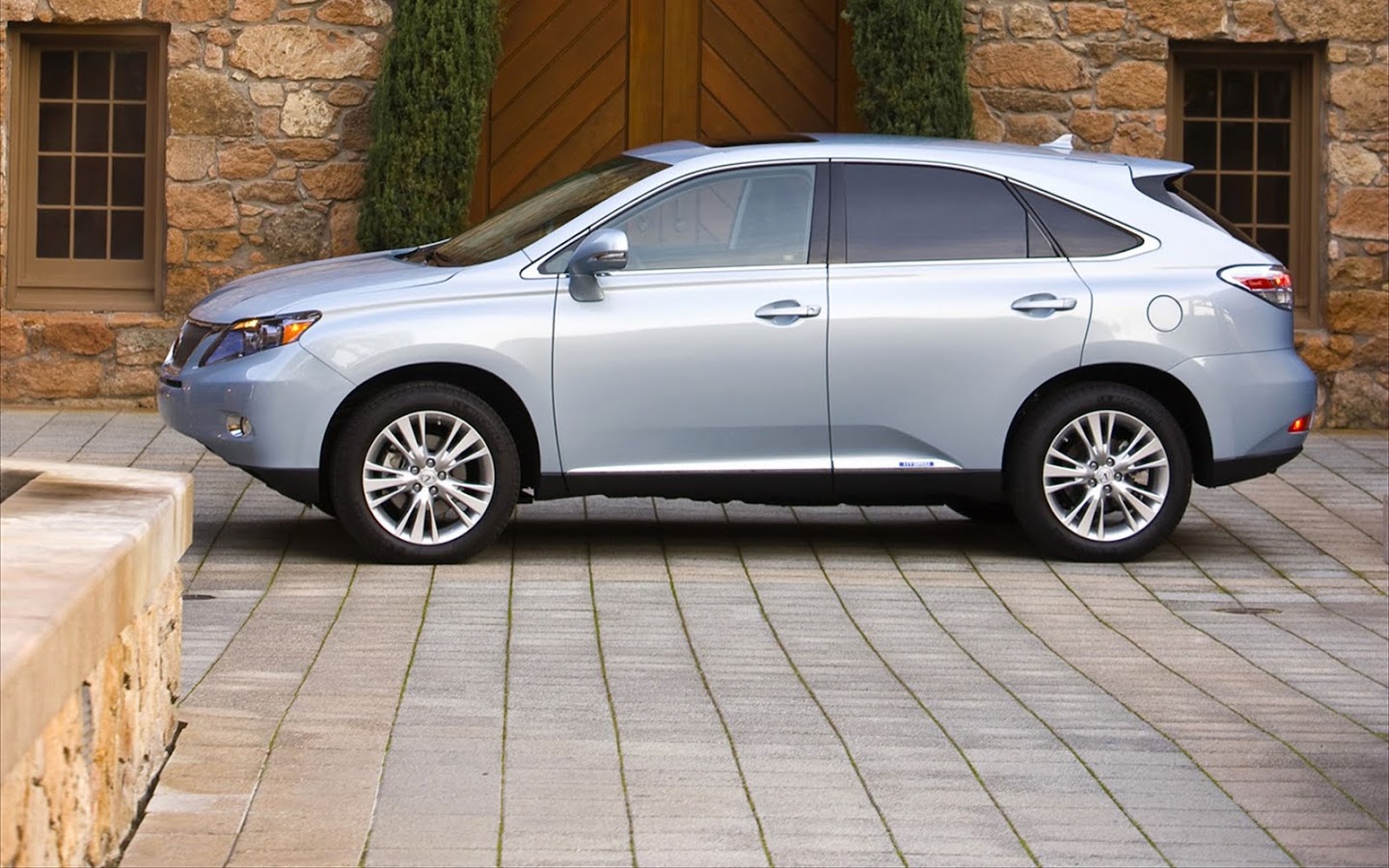

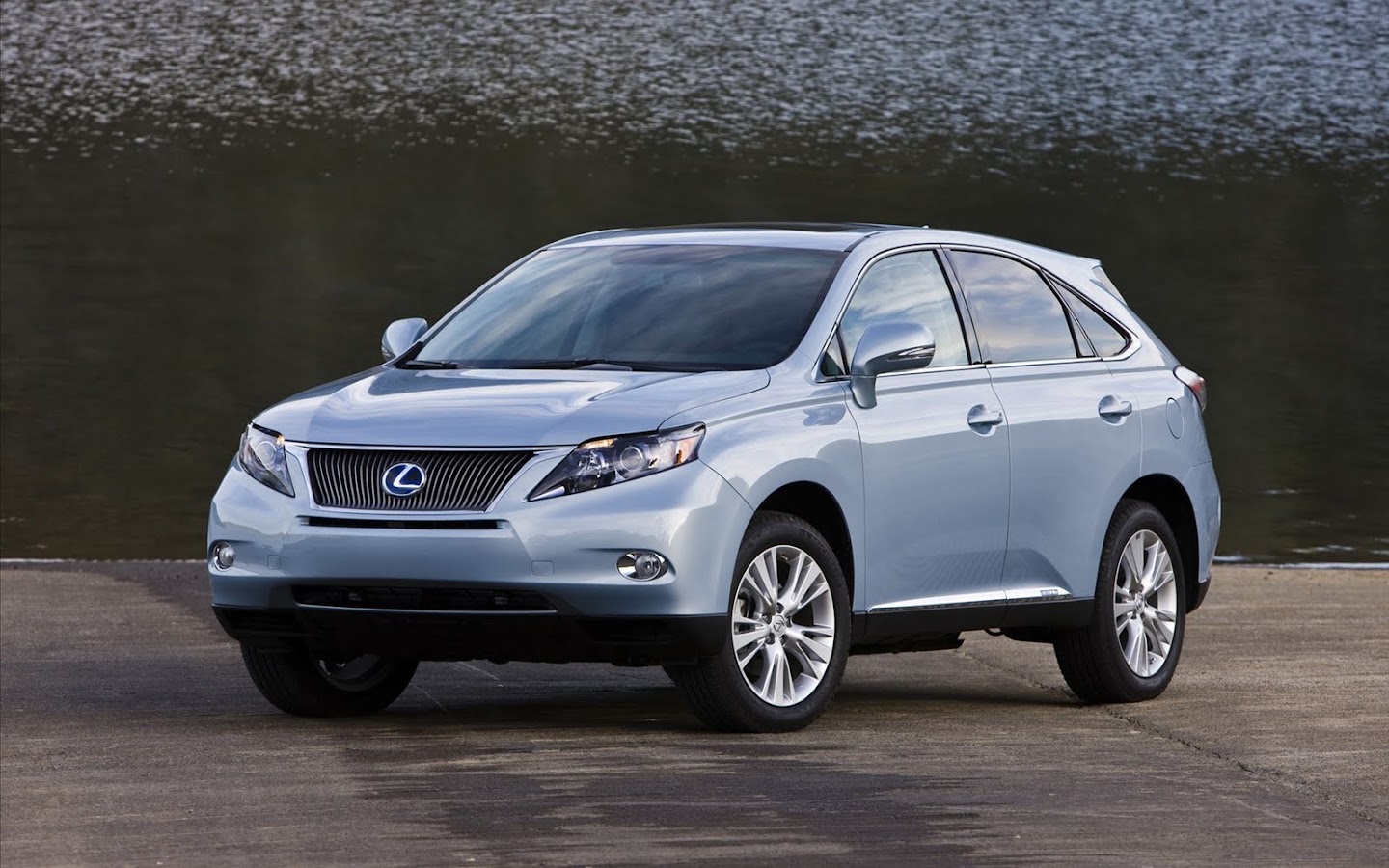

2011 Lexus RX 450h

aug 022011

2011 Lexus RX 450H

RX 450h Achieves EPA-Estimated Rating of 30 MPG Combined
• Available EV Mode Uses Electric Motors Only For Short Distances
• Versatility With All-Wheel or Front-Wheel Drive

The 2011 RX 450h defines design, engineering and luxury innovation in the hybrid luxury crossover segment. As Lexus’ best-selling hybrid model, the RX 450h smoothly moves into 2011 with several new exterior colors after the second generation was introduced in 2010.

The RX 450h offers several new exterior colors to enhance its stylish exterior design. Satin Cashmere Mica replaces Golden Almond Metallic. Black Opal Mica and Stargazer Black have been added to the palette, while Aurora White Pearl, Truffle Mica and Black Sapphire Pearl are discontinued.

Hybrid Powertrain

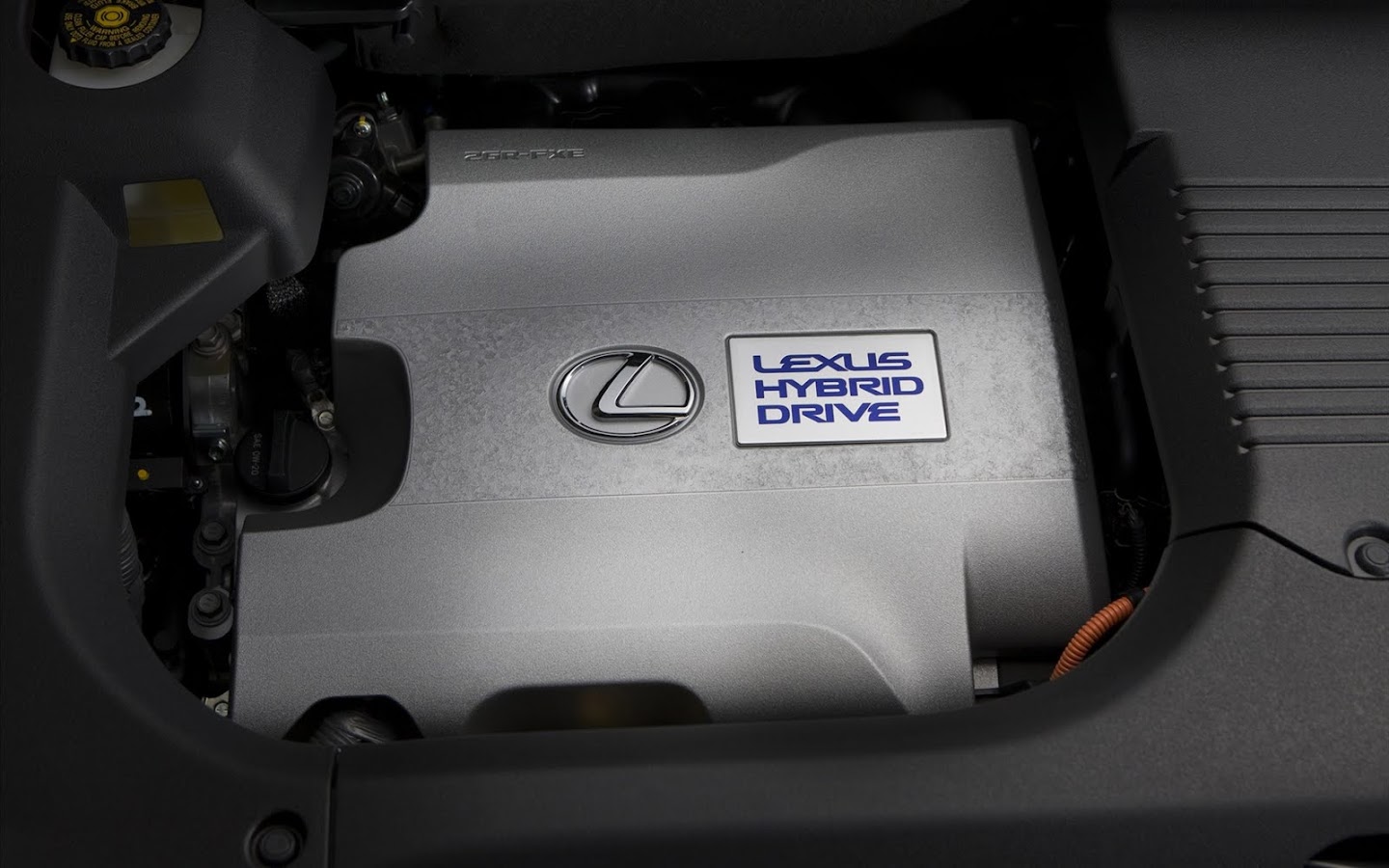

The RX 450h’s Lexus Hybrid Drive features a 3.5-liter V6 Atkinson-cycle engine, electric motors, a small and light power-control unit and other fuel-saving innovations. It offers up performance similar to V8s, 295 total system horsepower and better combined fuel economy

than the average four-cylinder mid-size sedan. The Front Wheel Drive (FWD) model has EPA-estimated 32 mpg city and 28 mpg highway (30 mpg combined) fuel economy ratings, while the All-Wheel Drive (AWD) model has estimates of 30 mpg city, 28 mpg highway, 29 mpg combined.

As a full hybrid, the RX 450h can operate in electric-only or gas-engine-only modes as well as a mode that combines the power of both. Extended electric-mode operation during low-speed or stop-and-go driving conditions helps reduce fuel consumption. Under certain circumstances, a driver-selectable EV mode can allow the vehicle to be driven short distances using only the electric motors. The RX 450h achieves Super Ultra Low Emission Vehicle (SULEV) certification in California (Tier 2-Bin 3 in other states).

With the Atkinson cycle, the gasoline engine’s intake valves are closed late to delay beginning of compression, resulting in a higher expansion ratio. That reduces intake and exhaust energy losses for more efficient combustion and improved fuel economy. The gas engine alone produces 245 horsepower

at 6,000 rpm and 234 lb.-ft. torque at 4,800 rpm. The Atkinson cycle also reduces exhaust temperature.

A cooled Exhaust Gas Recirculation (EGR) system reduces it further still, helping economy by eliminating the fuel enrichment otherwise needed to help prevent catalyst overheating under high loads.

A compact 288V DC Nickel Metal Hydride (Ni-MH) battery pack fits neatly under the rear seat. A boost converter efficiently raises voltage to 650V DC, and an inverter changes this to 650V AC for the front-mounted 123-kW electric motor-generator. The boost converter and inverter are enclosed in the power-control unit, which also houses the condenser.

The RX 450h FWD model’s hybrid powertrain employs two motor-generators: MG1, the engine-driven generator, is a starter and can charge the battery pack or power other electric motors as needed; MG2 is the front-drive motor. Power from the gas engine and MG2 is distributed to the drive wheels via a planetary gear-type continuously variable transmission. MG1 controls the output speed of the transaxle through the planetary gear set, without clutches or a viscous coupling. MG2 delivers torque over a wide range for better response and smooth performance. When the RX 450h is coasting or braking, the electric motors function as generators, capturing energy that would normally be lost as heat through the brakes and transforming it into electricity to recharge the batteries.

RX 450h AWD adds a third, rear-mounted motor-generator (MGR) to drive the rear wheels, eliminating the need for power-transfer gearing or a driveshaft from the front. The hybrid system electronically varies front and rear torque distribution depending on traction conditions. A two-step flywheel damper absorbs small torque fluctuations and also the minor vibration produced when the gasoline engine starts and stops. A SNOW mode slows accelerator-pedal response to help reduce the possibility of wheel spin.

Multi-Mode, a feature adapted to the vehicle’s electronically controlled continuously variable transmission, allows the driver to control engine braking for enhanced maneuverability on rough or winding roads. The AI-SHIFT feature selects and holds the optimal range when driving downhill or on inclines, providing a smoother driving experience.

The power-steering pump, water pump and air-conditioning compressor are driven electrically rather than by the engine, reducing parasitic losses.

To enhance fuel economy, an exhaust heat-recovery system circulates engine coolant through a unit installed in the exhaust pipe behind the catalytic converter. This feature reduces engine warm-up time, allowing it to stop earlier, more often, and for longer periods, improving both fuel economy and emissions.

All-Wheel Drive
The RX 450h AWD uses a separate rear electric motor-generator to provide power to the rear wheels when road conditions or throttle response dictates. When accelerating, or starting off on a low-grip surface, torque is quickly provided to all four wheels. At steady speeds, torque is sent only to the front wheels, enhancing fuel efficiency. For handling agility and control, the AWD system increases rear-wheel torque when the vehicle’s front tires start to lose traction and decreases rear-wheel torque when the vehicle’s rear tires start to lose traction.

Chassis/Body/Suspension/ Brakes/Tires
Lexus engineers provided the RX with an engaging driving experience, and a quiet and smooth ride. A key factor in the RX models’ handling agility is the uniquely designed double-wishbone rear suspension. Another key benefit of the rear suspension is that the packaging yields greater cargo area room. The front suspension geometry was optimized with a thick stabilizer bar. Inversely wound front coil springs compress in opposite directions, preventing the negative effects of suspension compression on steering.

The standard electric power steering system contributes to agility and better steering feel while eliminating the parasitic losses of a hydraulic steering pump. Eliminating hydraulic oil also provides an environmental benefit and reduces maintenance. When the driving conditions involve little steering input, energy consumption is reduced, improving fuel economy by nearly three percent. Steering assist is automatically adjusted in response to vehicle speed, with greater assist at low speeds and greater feel at higher speeds. In addition, maneuverability in the RX is easy with its 40 foot turning circle curb-to-curb.

Vehicle Dynamics Integrated Management (VDIM) handling technology is standard on the RX 450h. VDIM system anticipates loss of vehicle control in virtually any direction and governs all of the vehicle’s dynamic handling systems – the Anti-lock Braking System (ABS), Brake Assist (BA), Vehicle Stability Control (VSC) and Traction Control (TRAC) – with the electronic throttle control system. The system employs them collectively and seamlessly to help make corrections while allowing higher dynamic capability.

The system’s enhanced VSC function adds steering assist torque to help aid handling on a split-friction surface. The VDIM system also provides a limited slip differential effect. The TRAC and VSC functions can also be switched off, for example, when the driver needs to free the vehicle when stuck in mud or snow.

The RX stops with the help of two-piston front caliper brakes and brake feel is enhanced by optimizing pads, pedal ratio and booster output characteristics. On the RX 450h, Electronically Controlled Brakes (ECB2) work closely with VDIM, translating brake pedal stroke speed and pressure to generate the precise amount of hydraulic pressure needed.
Standard Hill-start Assist Control (HAC) uses brake pressure to help prevent the vehicle from moving backward when starting out on an incline. This system does not wait to detect rollback, however. It can be controlled by the driver and works in both forward and reverse. While the vehicle is stopped and the brake pedal is depressed, pushing it further activates the feature. Brake pressure is then maintained for approximately two seconds after the brake pedal is released and the driver switches to the accelerator pedal.

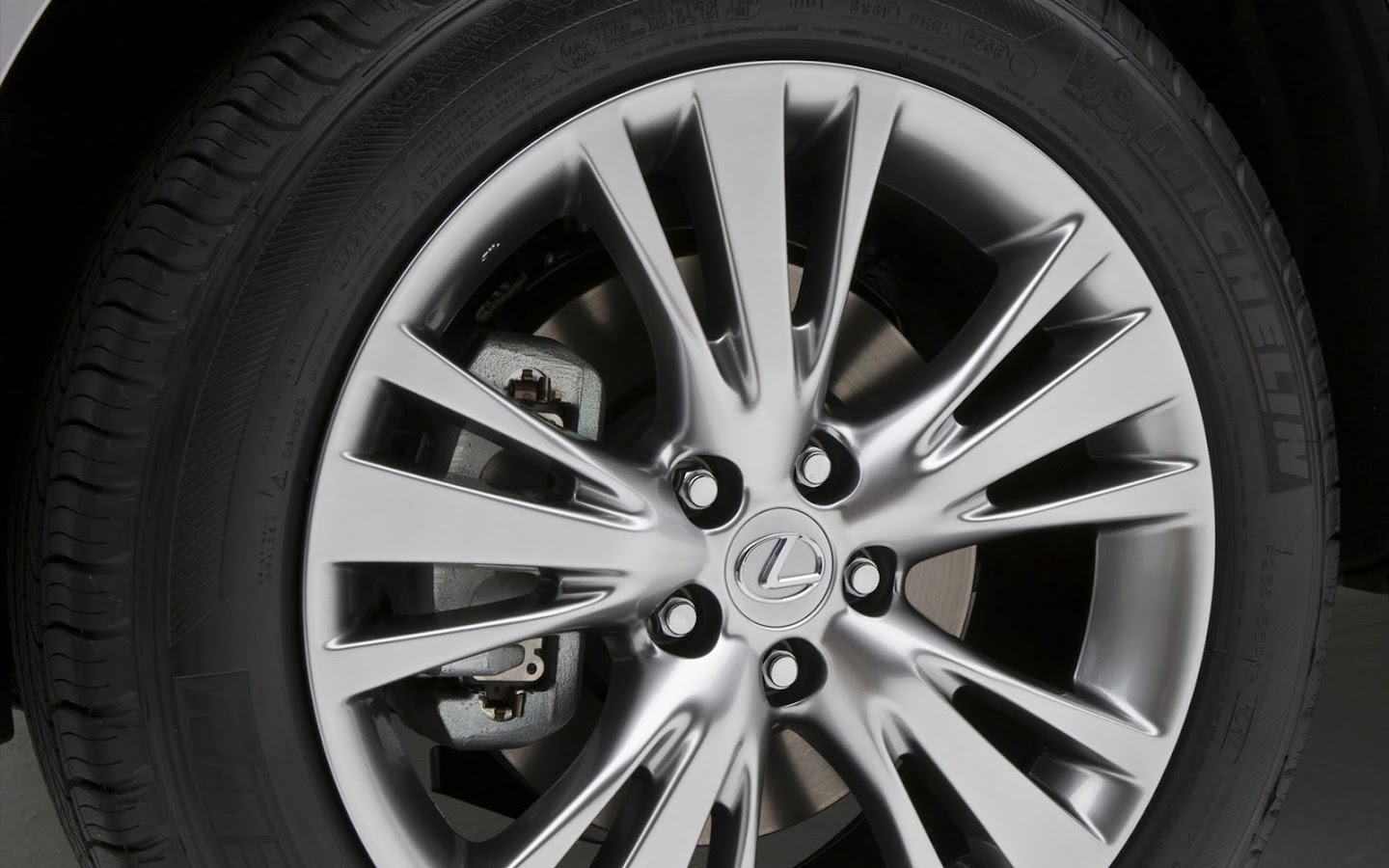

Standard 18-inch aluminum-alloy wheels, which were designed to appear as if carved from a single block, have 235/60R18 tires. Optional 19-inch aluminum-alloy wheels with 235/55R19 tires are available with a hybrid-exclusive design.

Safety/Security

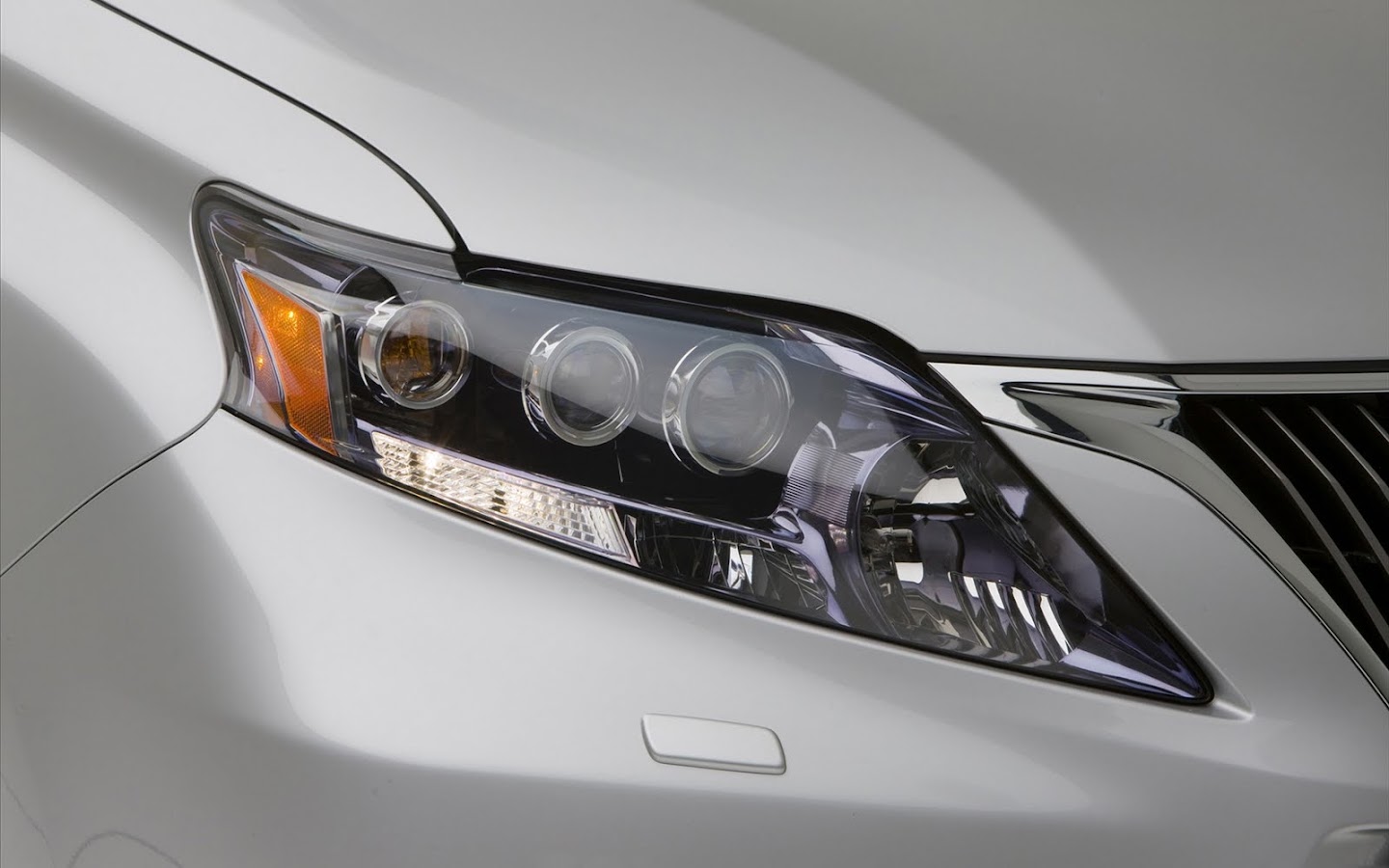

The RX 450h features Intelligent Adaptive Front-lighting System (AFS) for high beams of HID headlamp equipped models, and for the low beams of the LED equipped models. When entering a corner, AFS estimates where the vehicle will be in three seconds, based on the vehicle speed and the angle of the tires, and adjusts the lateral aim of the headlamps. AFS can be switched off by the driver if desired and includes an auto-leveling function.

Also available is an automatic high beam system which uses a camera mounted on the inner rear view mirror to switch between high and low beams in response to oncoming vehicles and those traveling in front, or when other ambient sources are detected, helping reduce driver inconvenience.

The optional Pre-Collision System (PCS) with Dynamic Radar Cruise Control uses millimeter-wave radar to measure and help maintain a pre-set following distance from a vehicle traveling ahead. The radar sensor can detect certain obstacles in front of the car, and a PCS computer with vehicle speed, steering angle and yaw-rate inputs helps to determine whether a collision is highly possible. In such a situation, PCS preemptively retracts front seat belts and pre-initializes BA so that increased braking will be applied the instant the driver depresses the pedal.

A high-strength cabin design and comprehensive Supplemental Restraint Systems (SRS) are designed to help provide a high level of crash-energy management. Approximately 42 percent of the entire structure uses high tensile strength sheet steel. The structure was engineered to help provide collision compatibility with vehicles of varying heights and weights.

The RX 450h is equipped with a segment-leading 10 standard airbags, including side curtain airbags, front seat-mounted side airbags, rear side airbags (for the outboard seating positions) and knee airbags for the driver and the front passenger. A roll sensor signals the side curtain airbags to inflate if a predetermined threshold of vehicle tip-up is detected.
The front-passenger airbag is a dual stage, twin-chamber design that, when deployed, helps provide optimal protection. Active front headrests help reduce the severity of a whiplash injury in the event of certain types of lower speed rear collisions.

Luxury/Comfort/Convenience
Lexus luxury begins with how the customer first interacts with his or her vehicle. All RX models are equipped with the SmartAccess keyless entry with push-button start. As the driver approaches the vehicle, interior and exterior courtesy lamps illuminate. Opening the door, the instrument panel lighting gradually fades in. When the hybrid system is started, the instrument gauge needles and markings illuminate, followed by the multi-information display. After the driver exits the vehicle, the lights fade out at different intervals.

RX 450h is equipped with a power tilt and telescopic steering column. To ease entry and exit, the seat automatically slides up to two inches rearward and the steering wheel tilts upward and slides forward when the hybrid system is switched off. Upon pushing the “ON” switch, the seat and steering wheel return to positions pre-set by the driver using the three-position memory system.

The standard 10-way power front seats are shaped to accommodate arm movement when operating the available Remote Touch, while also holding the occupants in place. Both the driver and passenger seats also feature power lumbar adjustment. Also available on the RX is a ventilation function for the front seats to help improve comfort on hot and humid days. The shape and texture of the armrests and switches offer an ideal combination of tactile feel and functionality.

The leather-wrapped three-spoke steering wheel features integrated audio controls and a unique cross-section that is designed to provide a more natural grip than a conventional round-section wheel. An optional leather and wood trimmed wheel is also available.

Three seat materials include standard fabric, optional smooth leather or even softer semi-aniline leather. In addition to light gray and black, Parchment is available as an interior color. The RX 450h also exclusively offers a black and light gray interior with striking black accents. Standard wood trim comes in Brown Walnut matched to Parchment, or Espresso Bird’s-eye Maple matched to gray and black.

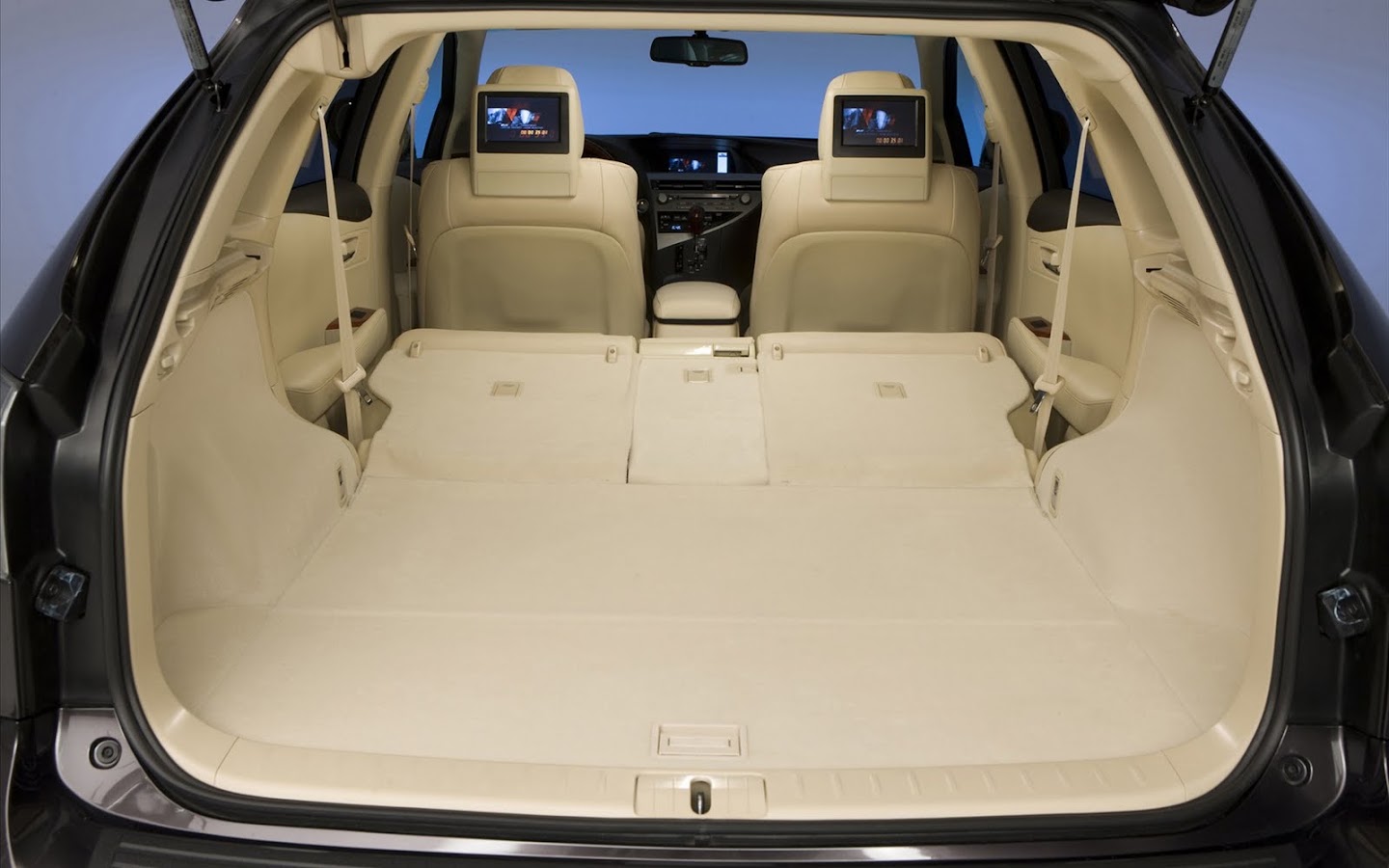

The center console box provides more than 0.75 cu. ft. of storage capacity, enough space to comfortably store CDs/DVDs or the vehicle’s owner’s manual. The three-part (40/20/40) rear seats can slide fore and aft, recline, and fold down using the one-touch levers mounted in the luggage compartment. Compact rear-seat headrests help improve the driver’s visibility. The double-wishbone rear suspension, due to its compact packaging, yields a larger luggage compartment; the width between the suspension towers is increased by nearly six inches.

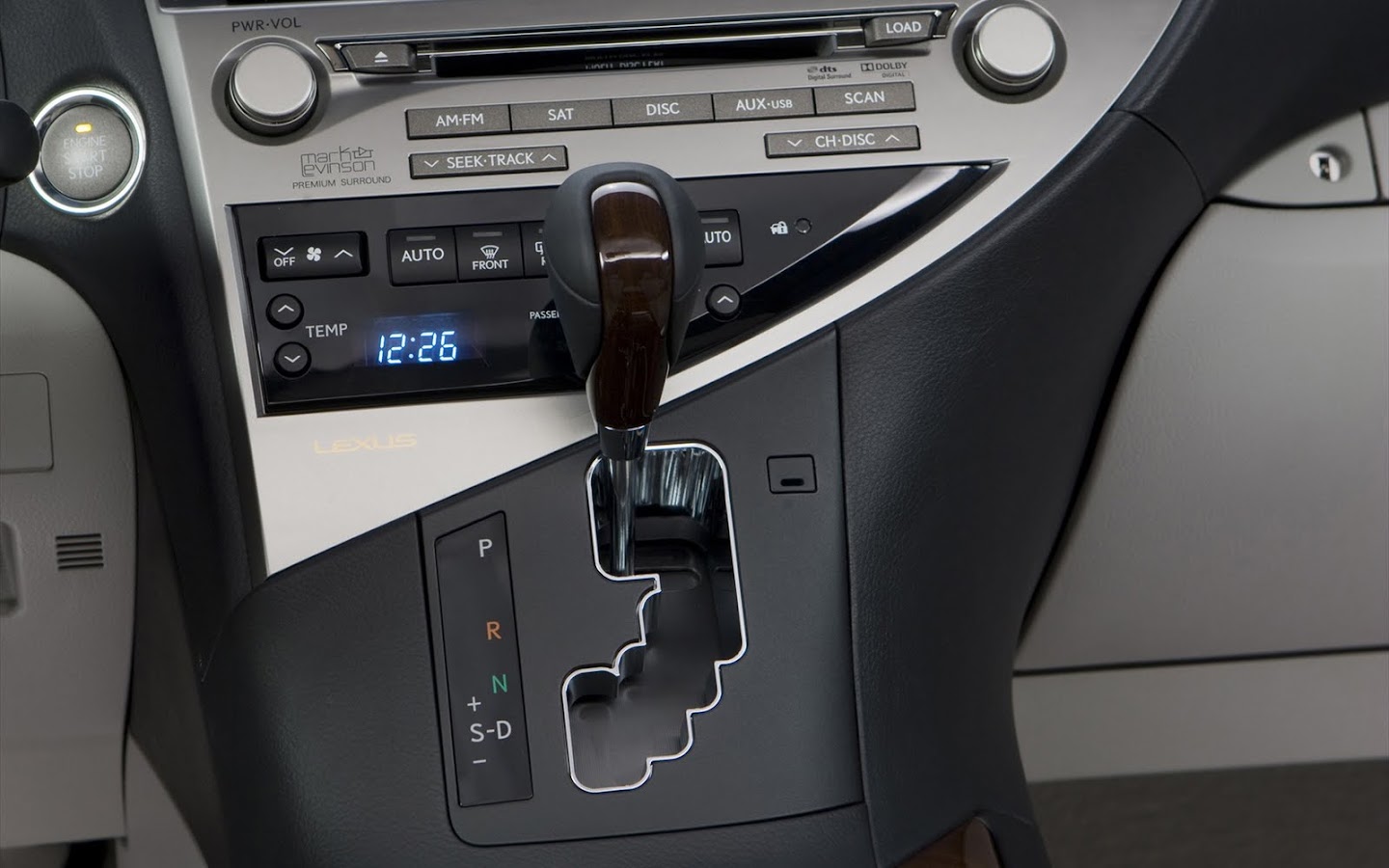

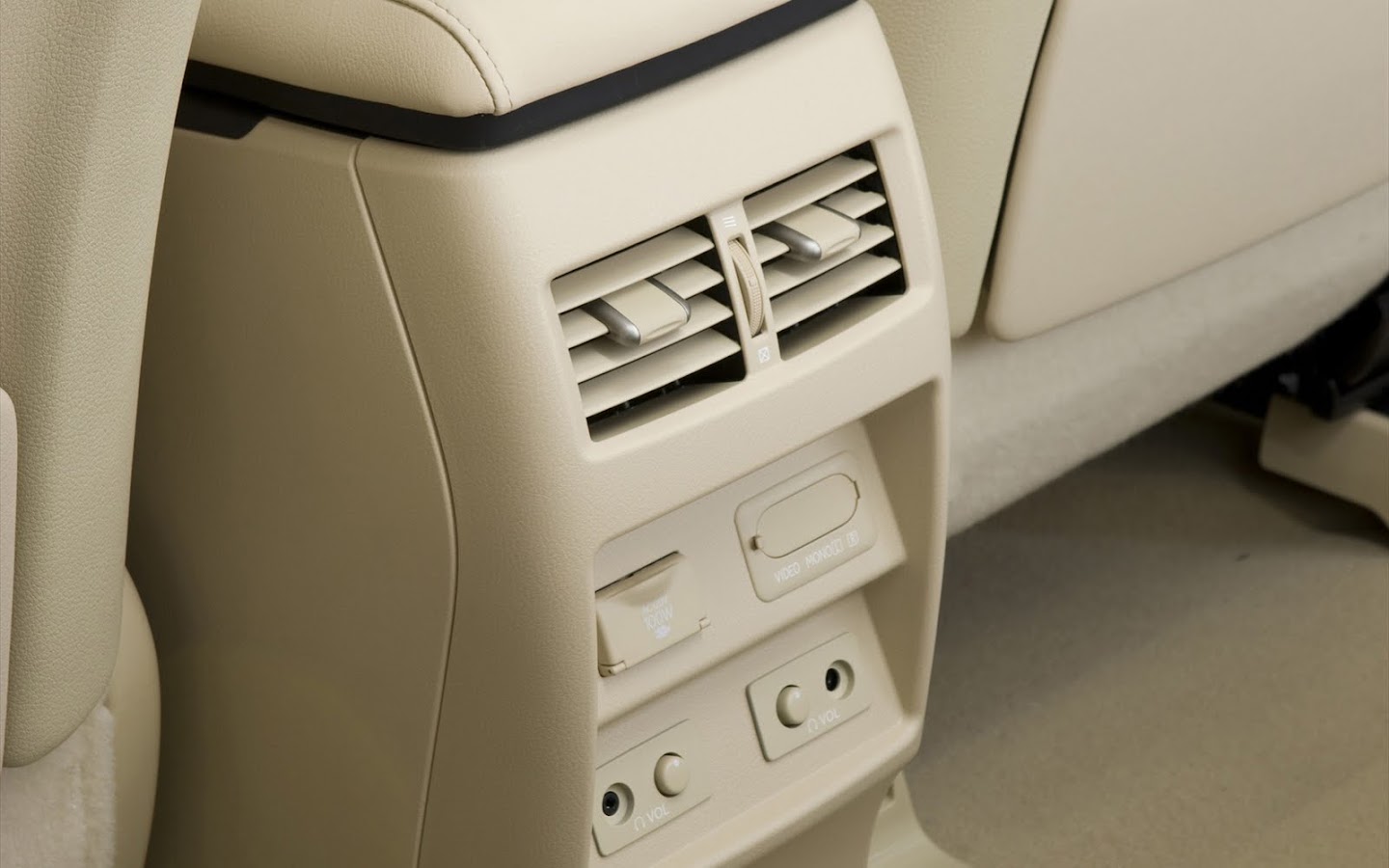

The quiet climate-control system offers quick cooling and warming. A high-efficiency compressor detects refrigerant flow in order to optimize engine control and fuel economy. An available smog sensor is designed to detect harmful particles (CO, HC, NOx) in other vehicles’ exhaust emissions and automatically switch between fresh air and recirculation modes. An electric compressor on the RX 450h includes a humidity sensor to help optimize air-conditioner operation, helping to enhance fuel economy.

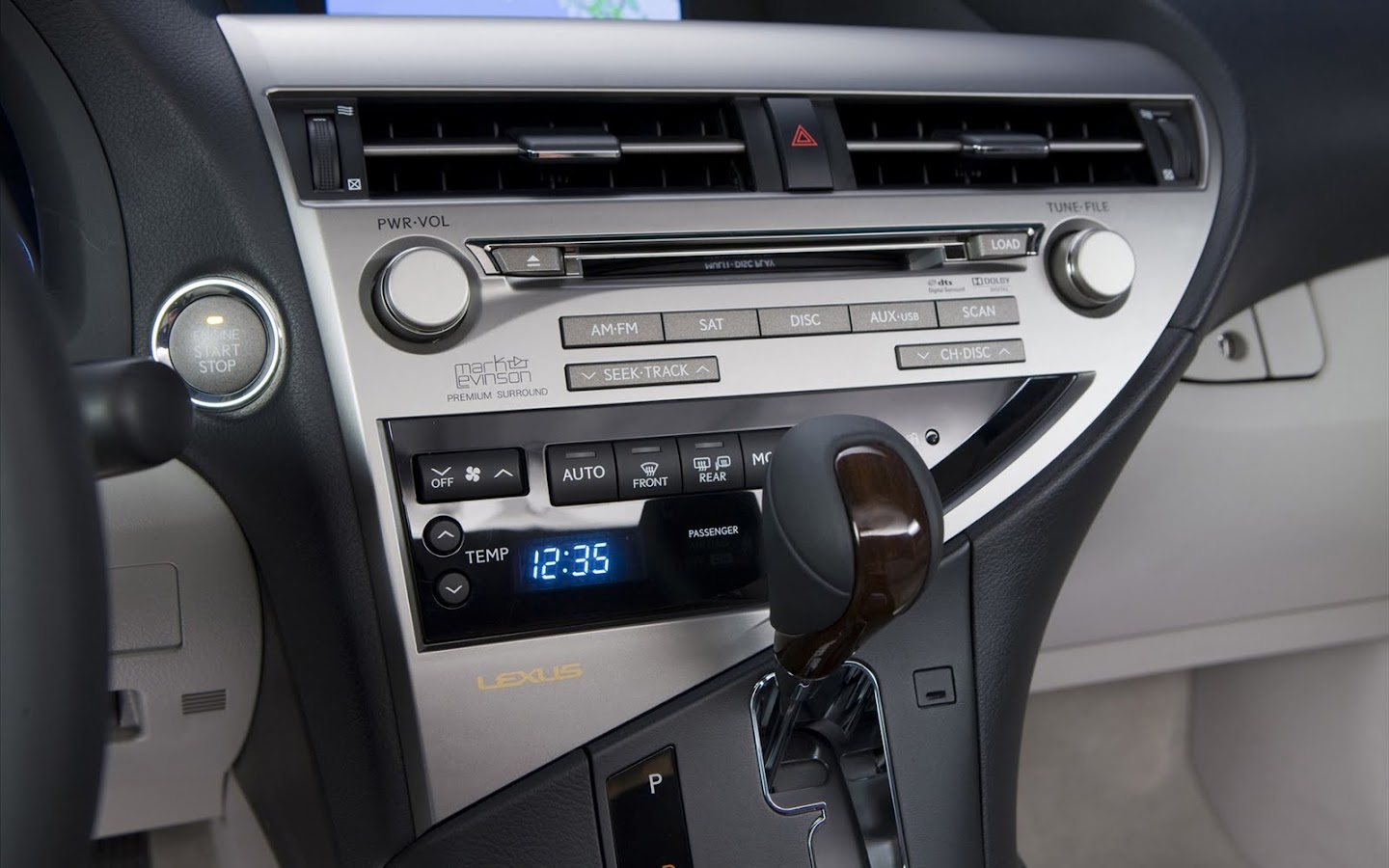

The RX continues the tradition of offering the Lexus Premium Audio system as standard equipment, in this case a powerful nine-speaker system with a six-disc changer. Creative placement and angling of the speakers perfectly cross-channels sound to the occupant on the opposite side of the vehicle to transform the cabin into a clear, crisp acoustic environment. Bluetooth® hands free phone capability is also standard.

RX models can accommodate a variety of music sources, providing available auxiliary and USB inputs, Bluetooth Audio wireless connectivity and a standard integrated XM Radio receiver (complimentary 90-day trial subscription). When an iPod® is attached via the USB port, information such as names for the artist, track and album is displayed on the available navigation or audio screen, while the iPod can be controlled through the audio system. The large center console storage box easily accommodates a variety of electronic devices while keeping wires out of sight.

Luxury Options
An available 12-speaker system audio system comes with the optional navigation or rear seat entertainment systems and includes two-rear-door tweeters and a compact, L-shaped subwoofer in the rear-luggage compartment.

The optional 15-speaker Mark Levinson® Surround Sound system allows listeners to enjoy 7.1-channel surround sound. The Mark Levinson system, a Lexus exclusive, features a center channel coaxial speaker, metal-cone midrange speakers, tweeters and a 100-watt amplified subwoofer. A 2.5-inch speaker built into each D-pillar provides the right and left surround-sound channels. The diffusion of sound provides each occupant the same level of audio quality.

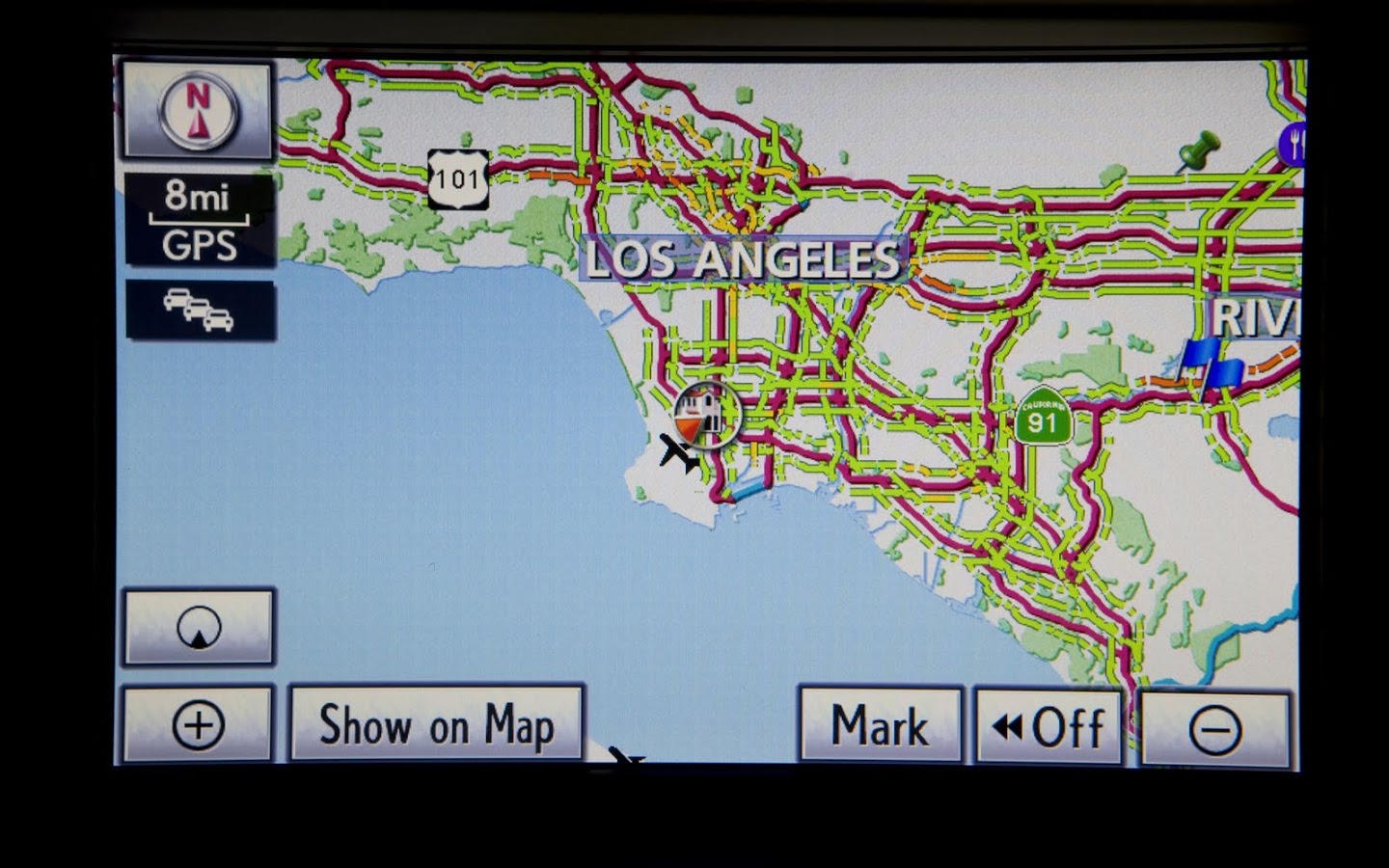

The available Hard Disc Drive (HDD) navigation system eliminates the need for DVD map discs and offers a unique voice recognition system, which can work using casual-language inputs on certain functions. An optional rear-seat entertainment system includes two high-definition seven-inch screens, one on each of the front seatbacks. Each screen can display video from separate sources. A remote control allows independent control of each screen. Rear-seat occupants can also choose to listen to audio through the wireless headphones instead of vehicle speakers.
The available wide-view side and backup cameras help provide the driver with a wider range of visibility. The driver can check hard-to-view areas by simply pressing the camera-select button on the steering wheel or, when in reverse, viewing the camera images on the navigation screen. An optional back-up camera displays images on the eight-inch navigation screen; systems without navigation have a 2.4-inch display in the rear-view mirror.

RX 450h also offers a telematics system, Lexus Enform® with Safety Connect®, available by subscription. Complimentary one-year trial subscriptions are included on all purchases of new Lexus vehicles equipped with these features. Safety Connect is standard on all vehicles while Lexus Enform with Safety Connect is on all vehicles equipped with the optional Navigation system. The Lexus Enform and the Safety Connect response centers operate 24 hours a day, 7 days a week—every day of the year.

Lexus Enform vehicles are factory ready for subscriptions to a variety of innovative XM services including XM NavTraffic®, XM NavWeather™ and XM Sports and Stocks services. XM services require separate XM subscriptions. The XM Sports and Stocks service is included with an XM radio subscription. All XM services offer complimentary 90-day trial subscriptions.

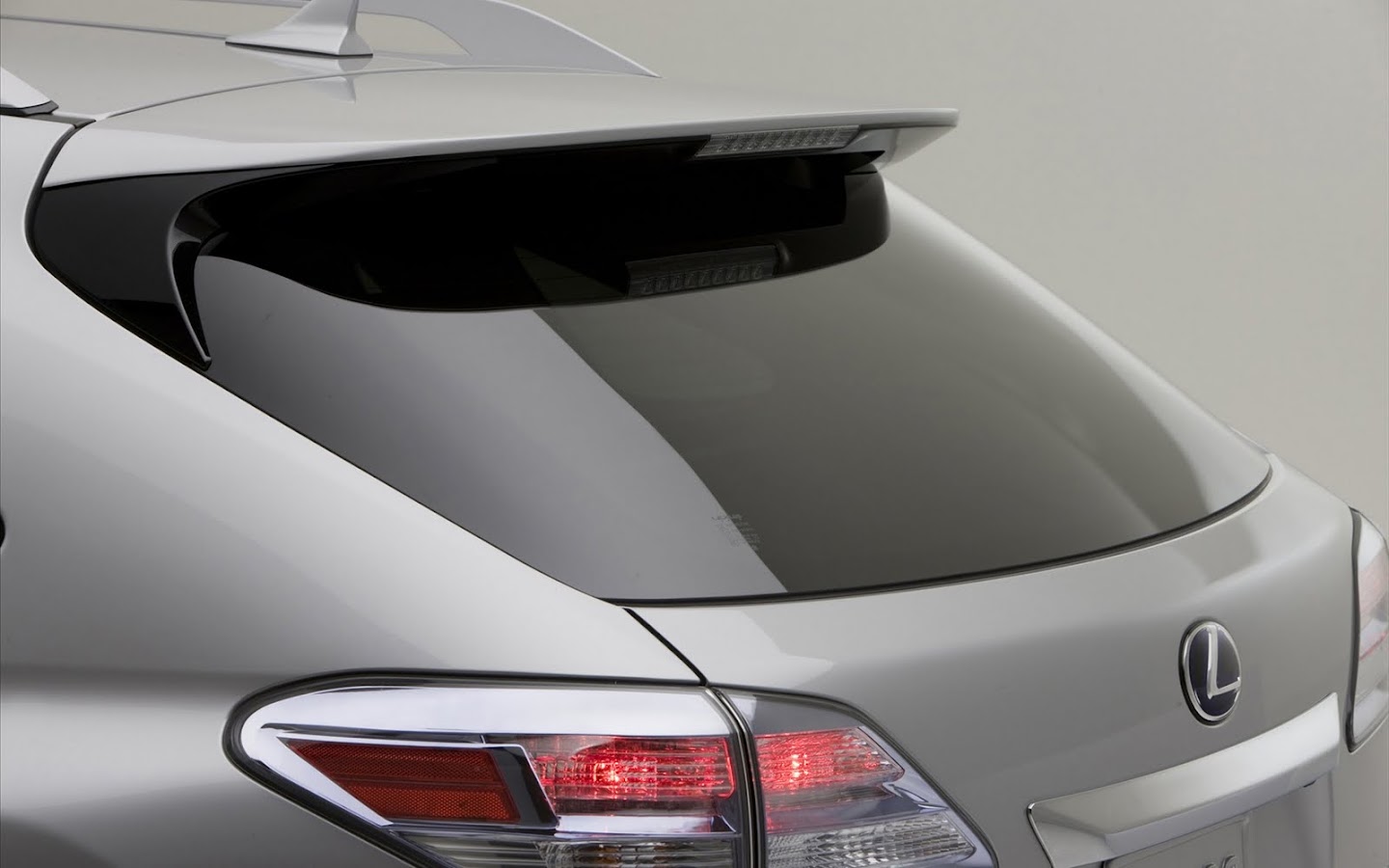

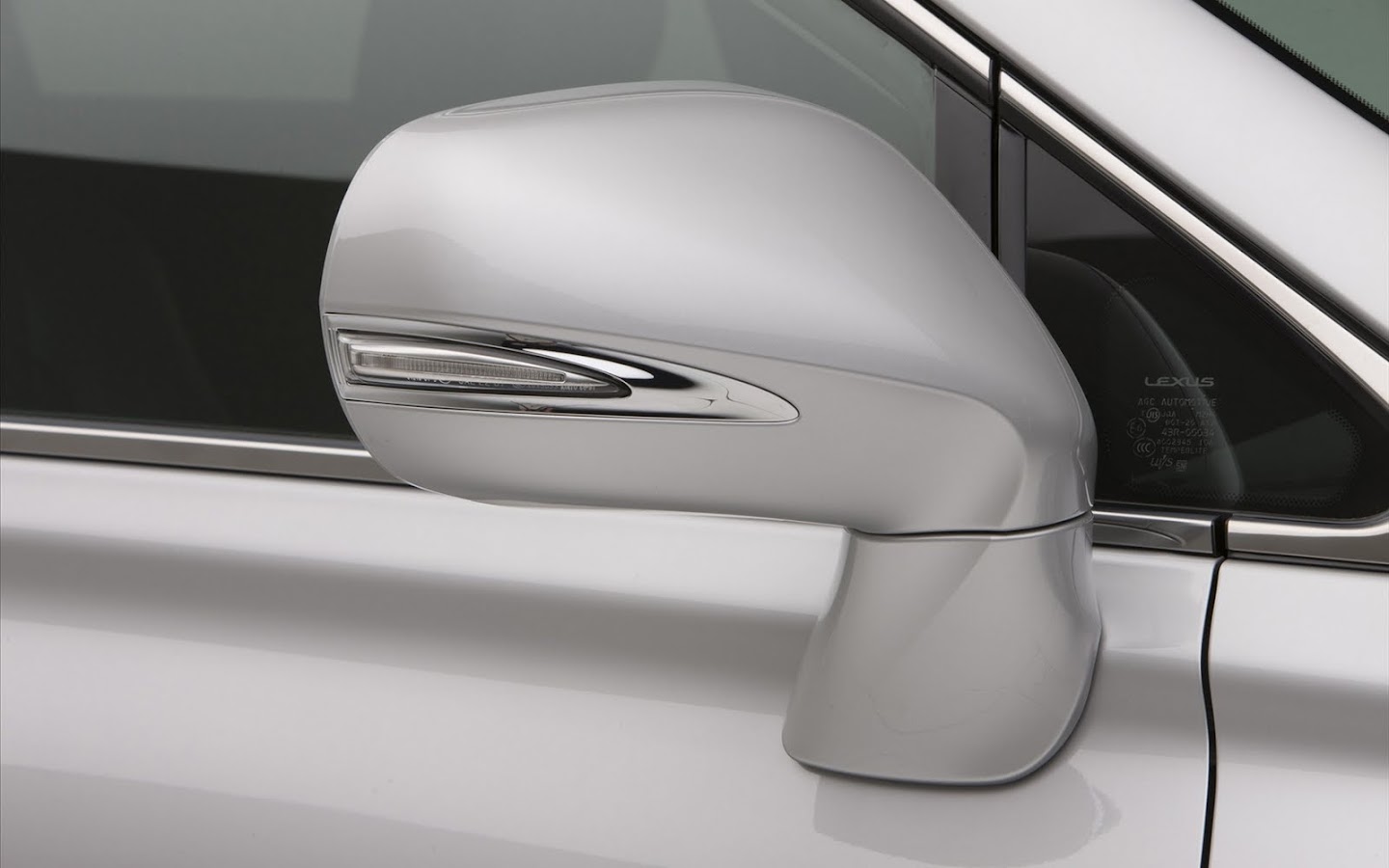

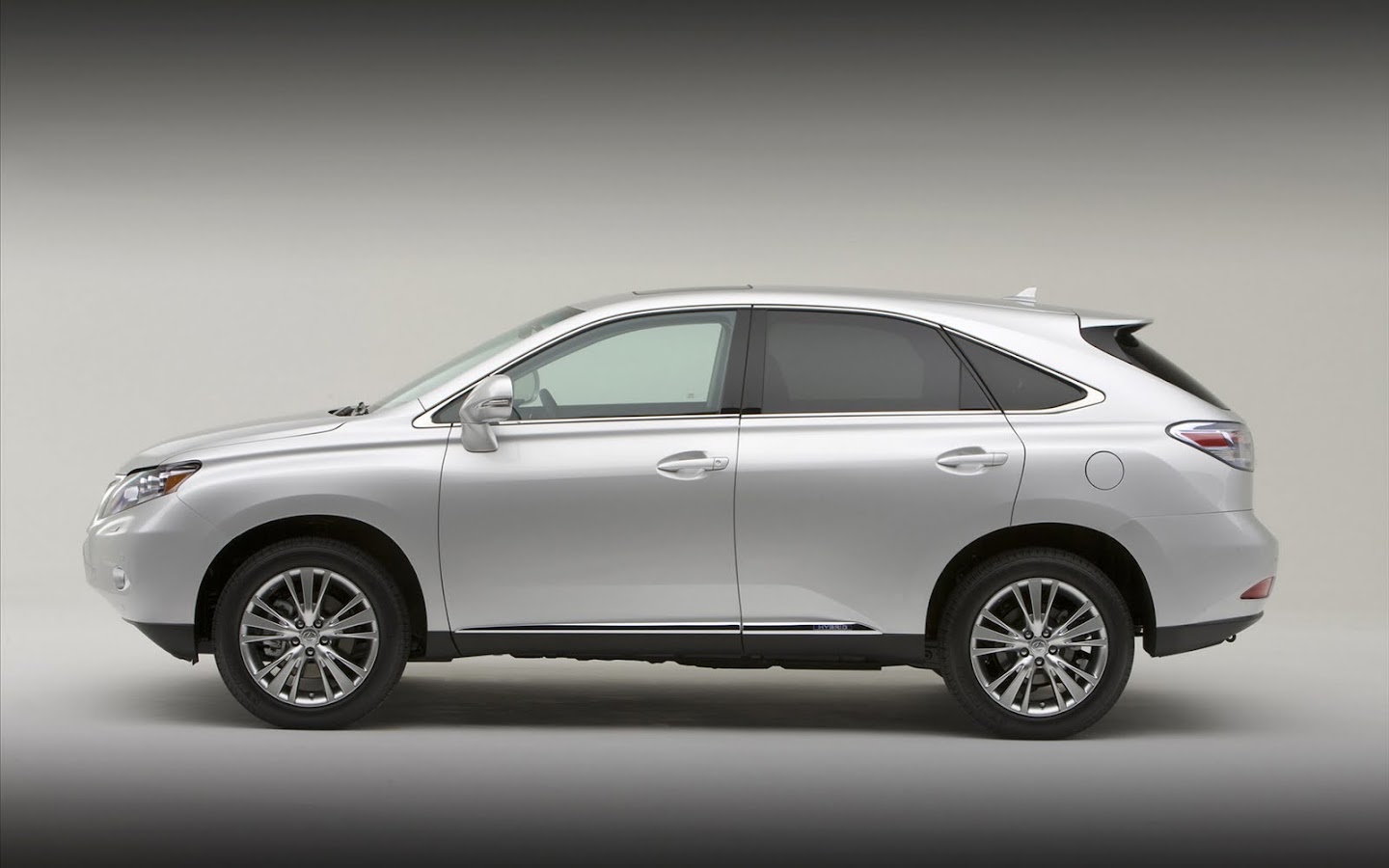

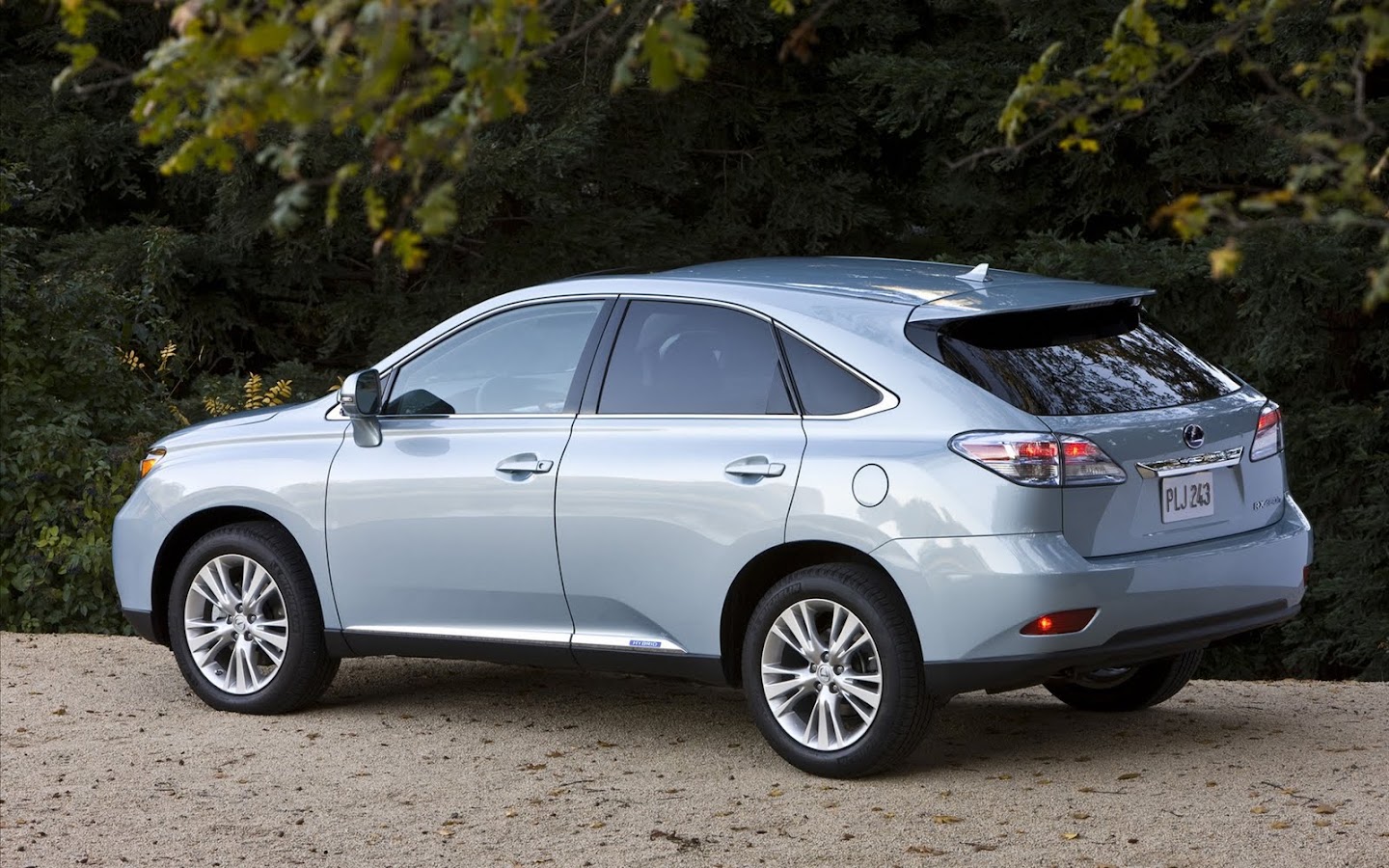

Exterior Design

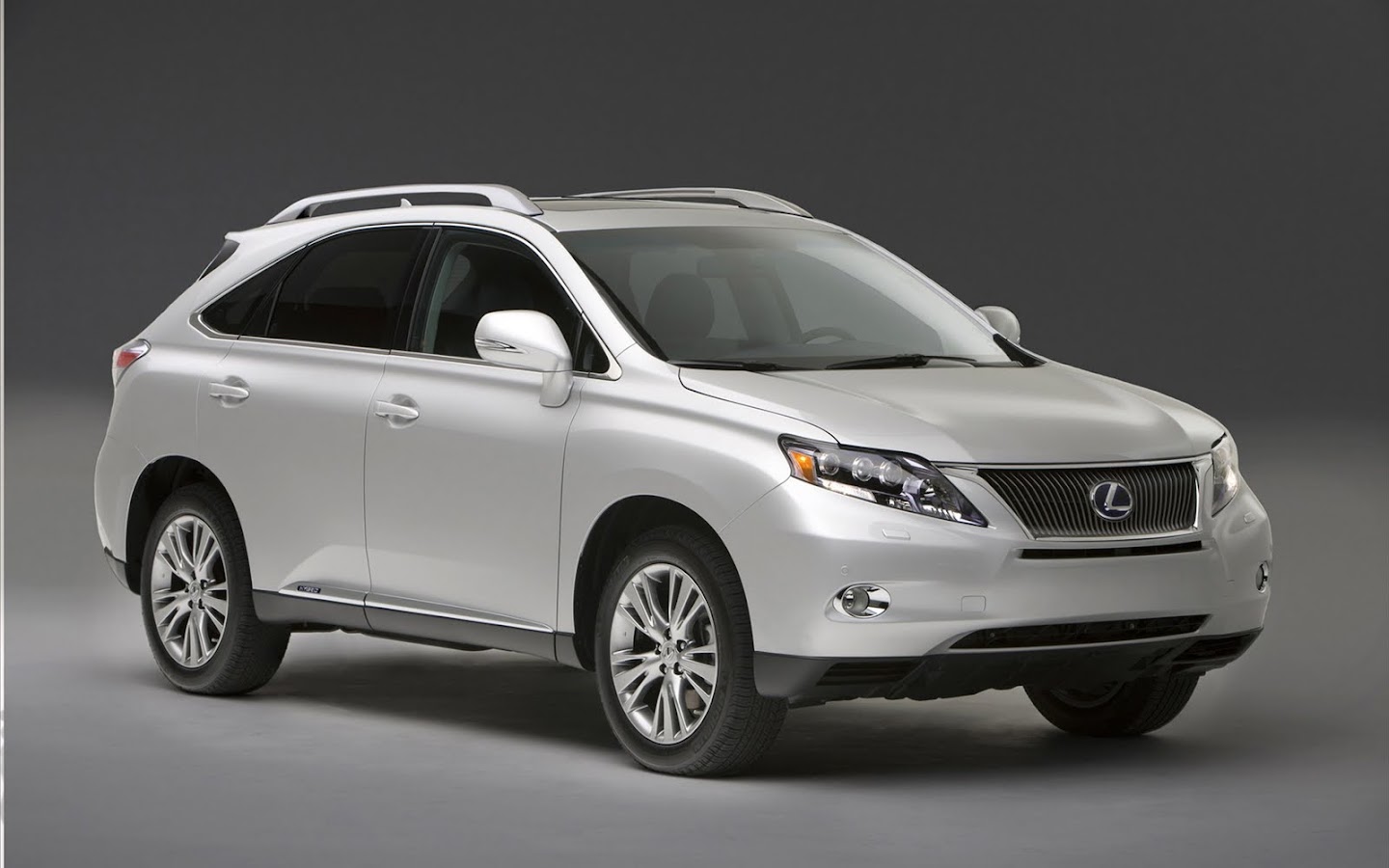

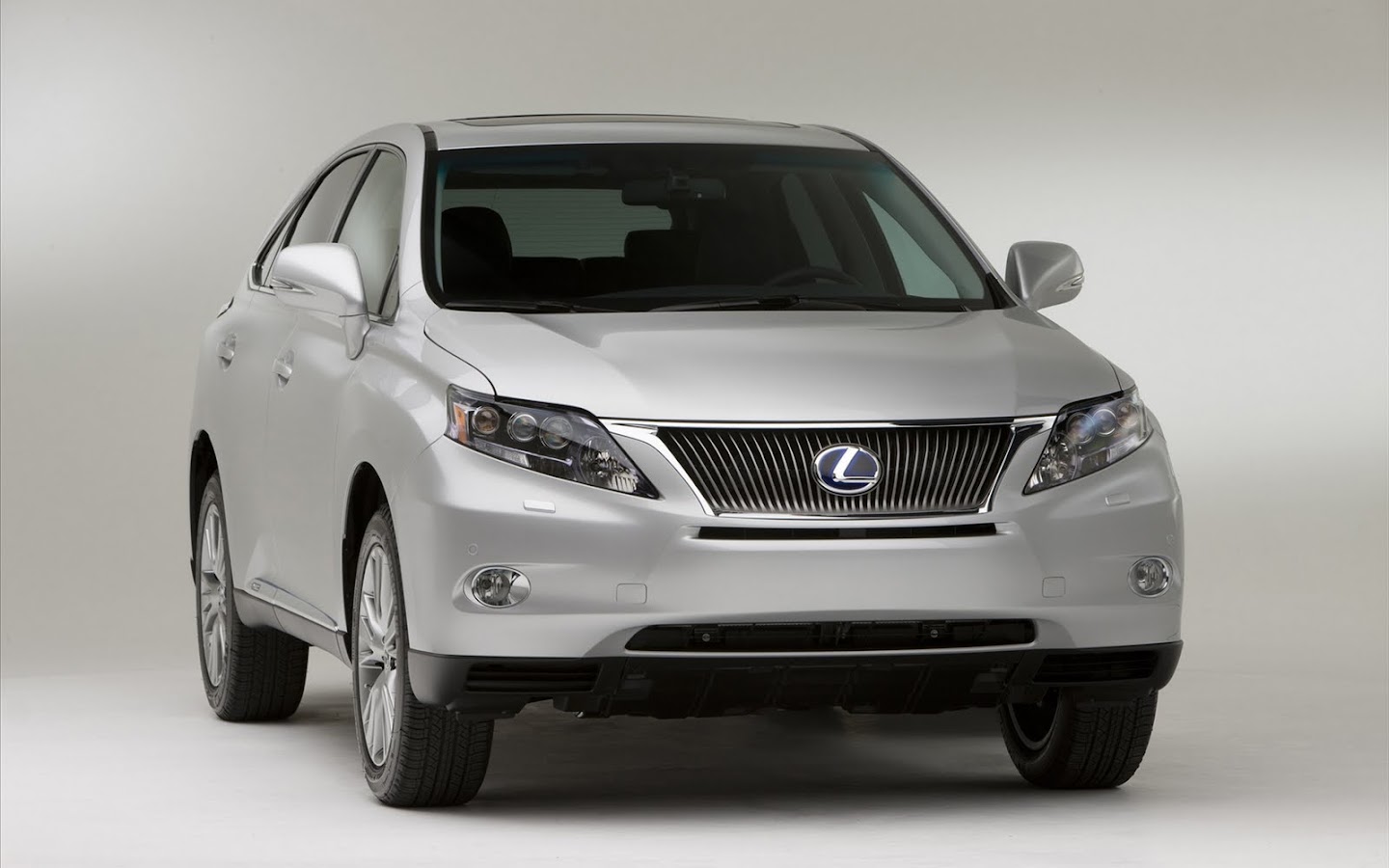

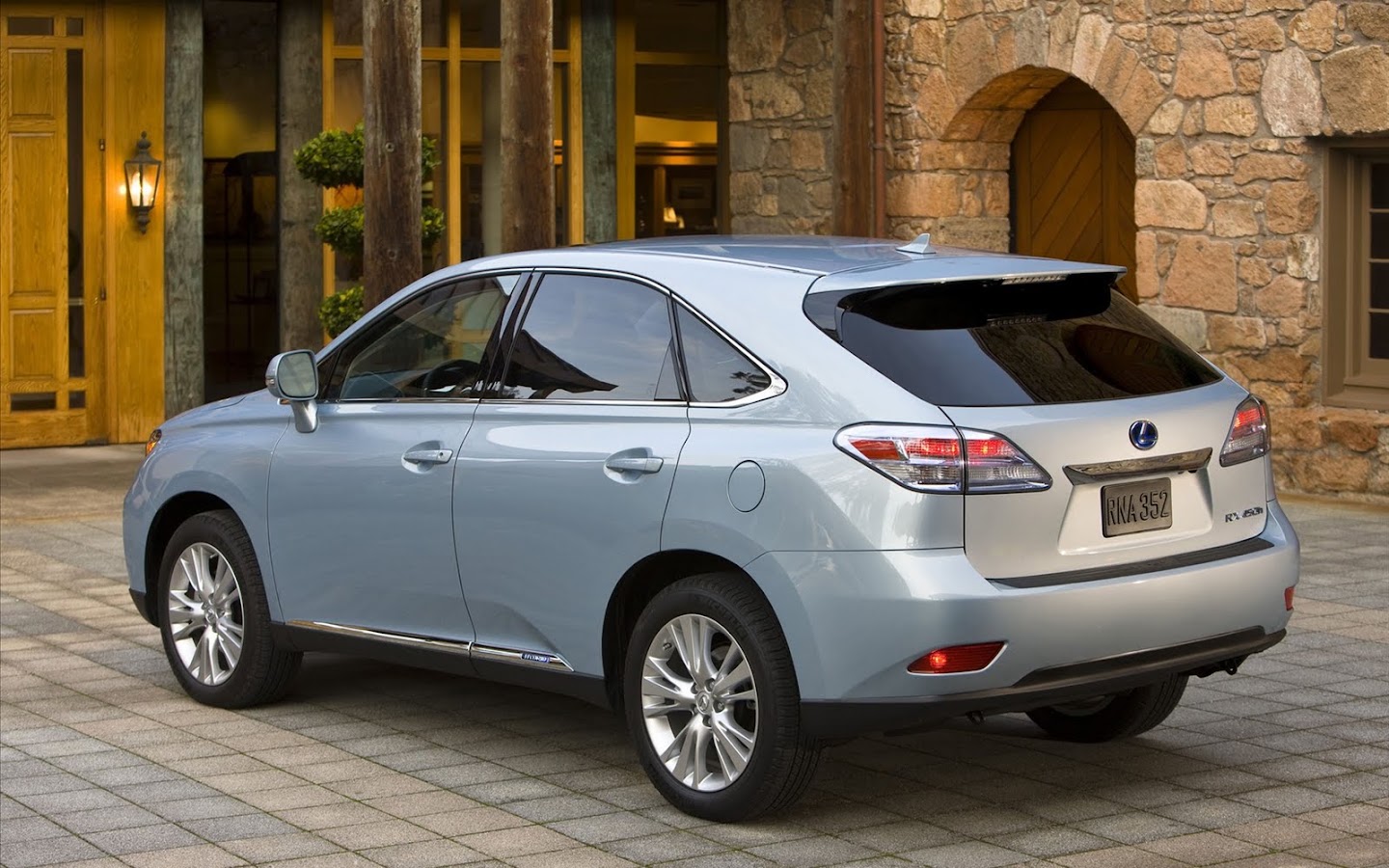

The Lexus RX models blend a dynamic version of L-finesse design to create a sleek profile that is accentuated by broad “shoulders” for an athletic yet elegant presence. Bright finish side-window moldings follow a subtly concaved line across the A– and C– pillars, extending at the front and rear ends.

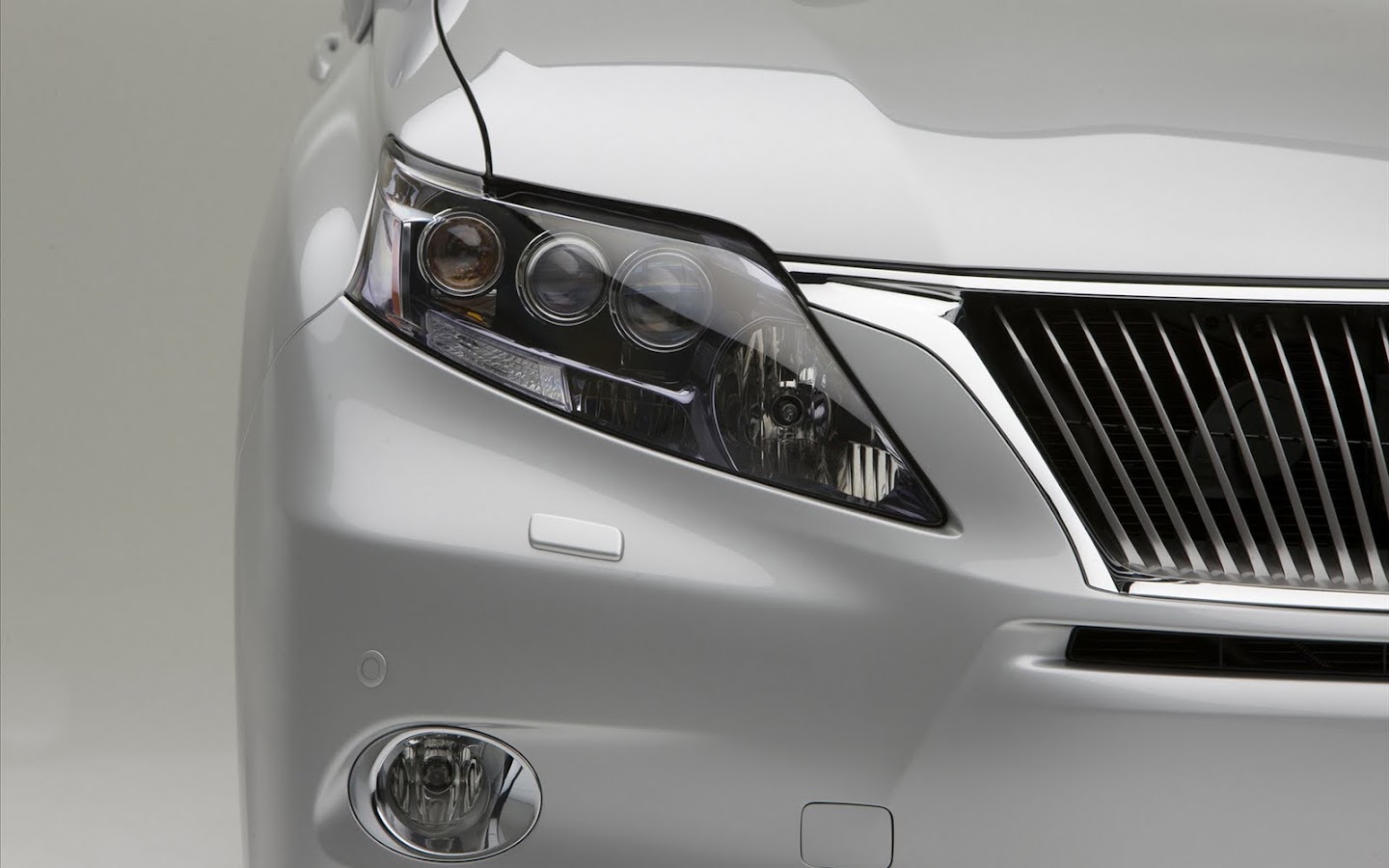

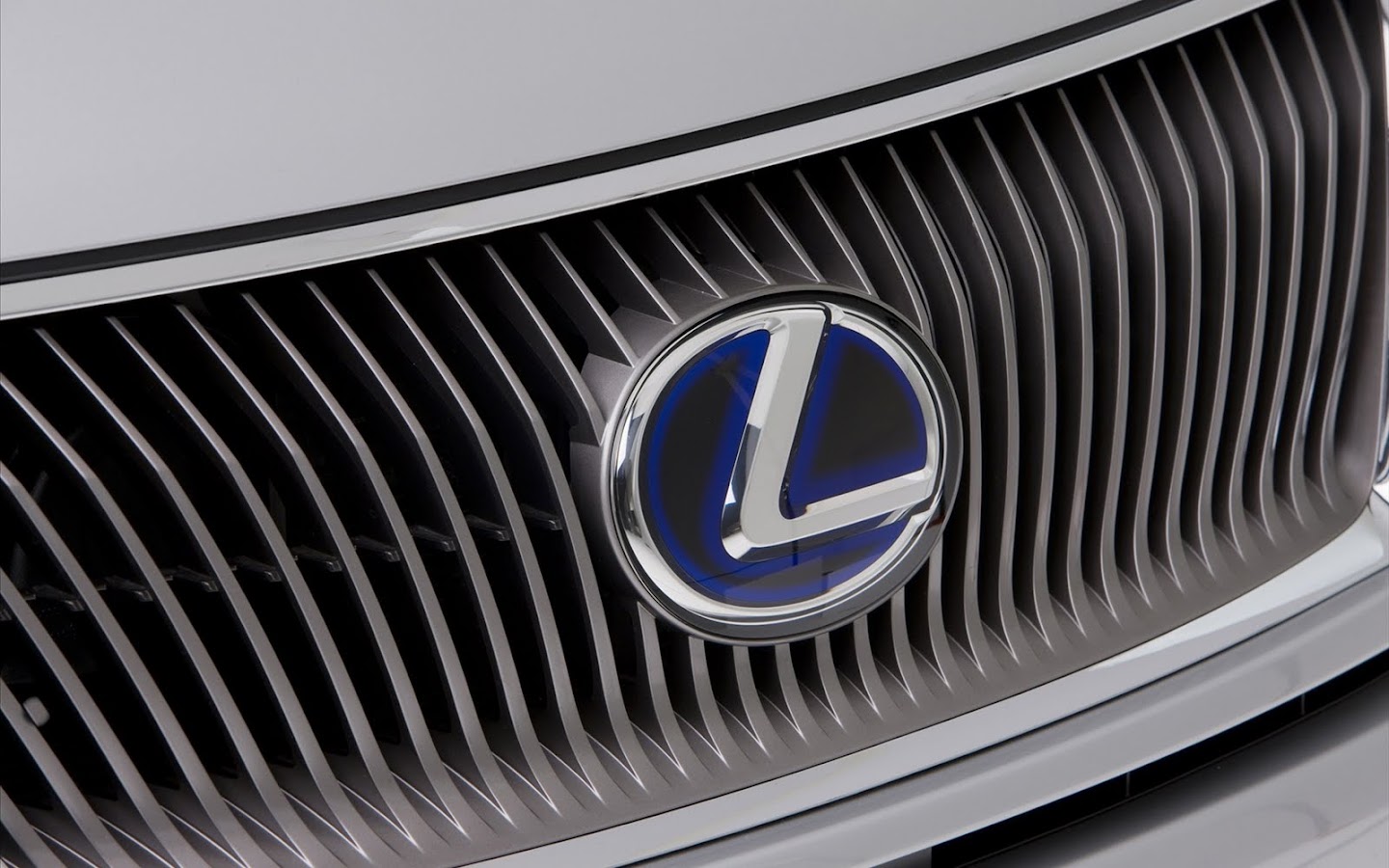

The Lexus design cue of placing the grille lower than the headlights, along with sharper headlight graphics, yields a strong frontal expression. The RX 450h offers standard halogen and optional HID and LED headlights. The RX 450h’s unique grille features a finer pitch than on the RX 350, creating a fluid-like surface, accentuated by its silver color.

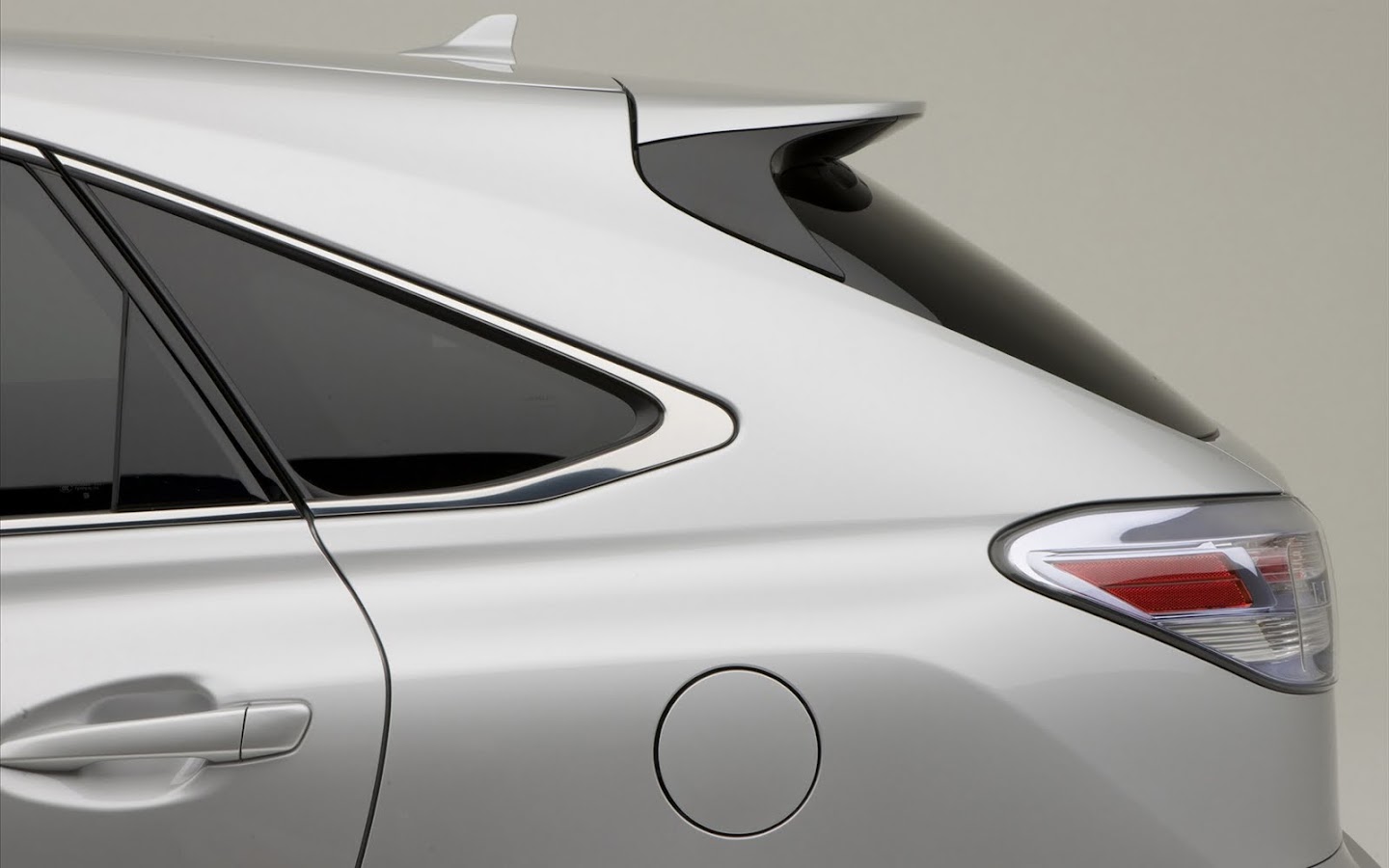

Pronounced front fenders flow into the doors, and integrated rear fender flares neatly sweep around to pull together the taut rear corners of the vehicle. The lower body emphasizes the standard 18-inch wheels. Passenger doors extend below the entry sill, helping keep out dirt and moisture.

Several exclusive design features, including the grille and front bumper, distinguish the RX 450h hybrid from the RX 350. Exclusive optional LED headlights offer a more distinctive appearance as well as longer life and lower energy consumption. Lexus hybrid blue is used for the front and rear emblems, hybrid logos, rear combination lights, and headlights.

A distinctive feature of the door handles is that the surface subtly twists outward from the front to the rear to give a comfortable grip. The side mirrors feature integrated LED turn signal lamps. The rear spoiler’s primary function is to help lower the vehicle’s Coefficient of drag (Cd), but it also conceals the rear wiper and houses the AM/FM radio antenna and high-mount stop lamp.

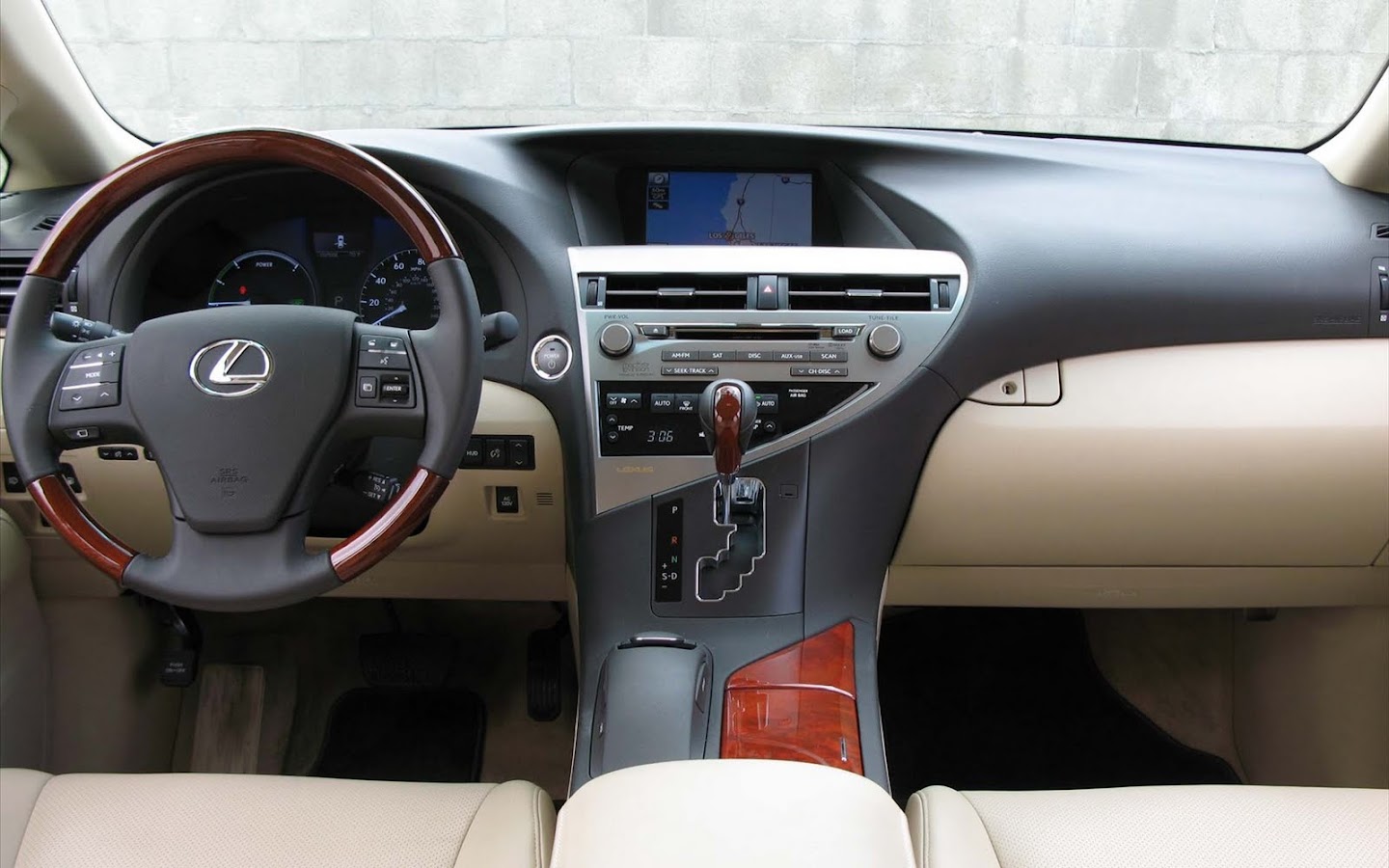

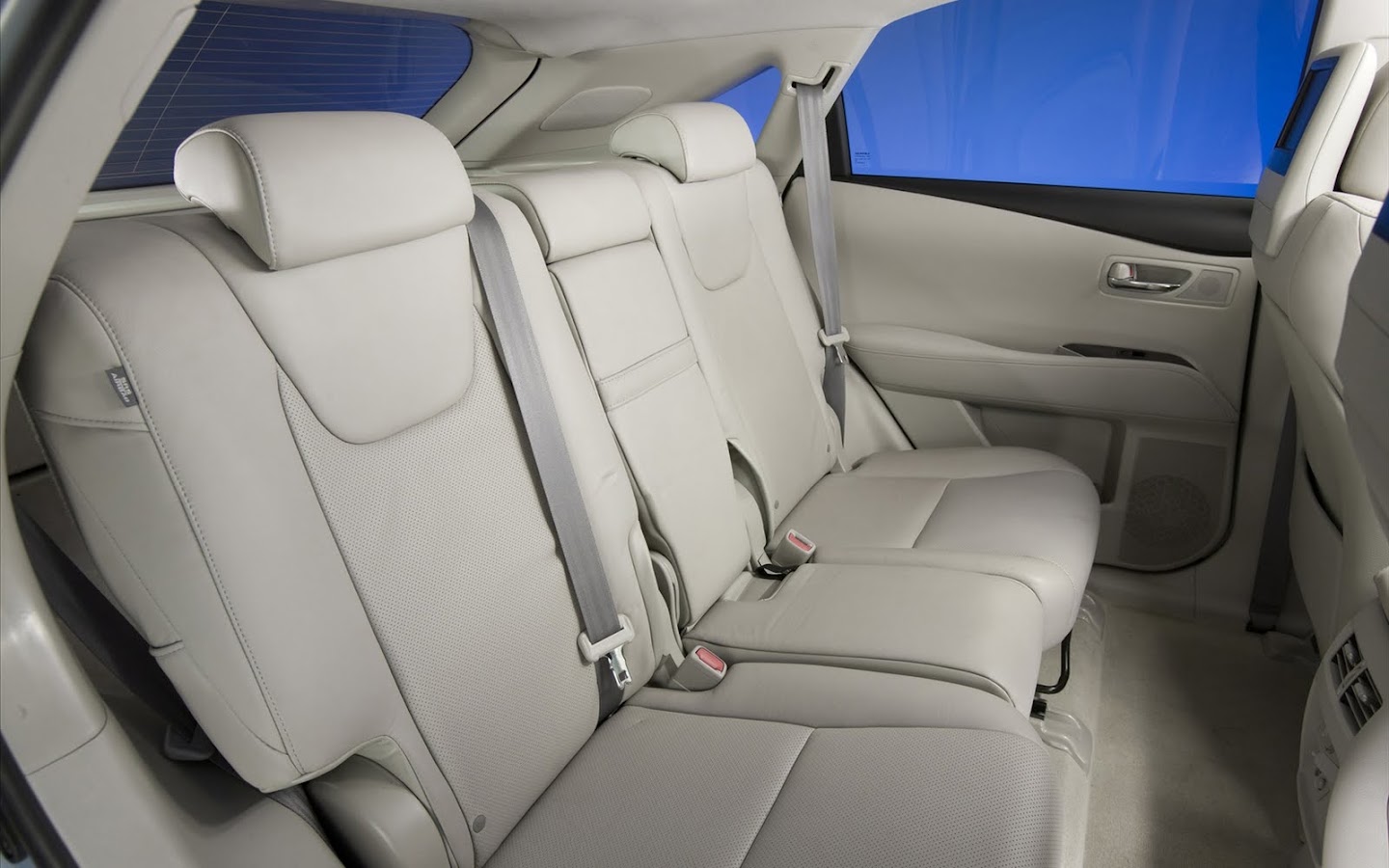

Interior Design

Based on Lexus L-finesse philosophy, the dramatically designed interior clearly separates the interior into two distinct zones – the “display zone” to provide information, and the “operation zone” for interaction with controls. The shoulder of the door trim comfortably envelops the occupants, the clear line of the trim beginning inside the cabin and tapering outward toward the exterior. The design imbues a feeling of a continuous line encircling the occupants and defining the controls and displays. Neatly sculpted metallic surfaces, especially on the asymmetrical center stack, showcase a bold contrast of shadow and light.

A high contrast white Organic Light Emitting Diode (OLED) is used for the multi-information display located next to the speedometer. Vibrant white characters are sharply displayed on a high-contrast black background for ease of use and a luxurious appearance. For the RX 450h, blue accented meters strengthen the hybrid image, and a hybrid system indicator replaces the tachometer to encourage driving in an economical manner.

In addition to an Eco Driving indicator light, RX models feature an Eco driving indicator zone that displays current fuel economy using a bar graph and alerts the driver when they are achieving low fuel efficiency.

Lexus employed extensive human-machine interface (HMI) studies to enhance occupants’ interaction with all controls. To help reduce driver distraction and effort, each HMI function in the RX wastes no movement. The available eight-inch navigation display (or seven-inch audio/HVAC display when navigation is not ordered) is placed at a higher, more distant position, providing a more natural visual angle.

Three innovations to come from the HMI studies include the multi-information switch on the steering wheel, the Remote Touch console-mounted navigation controller and the available Heads-Up Display. The multi-information switch allows the driver to access numerous function settings without taking hands off the steering wheel, and reduces the number of individual switches, contributing to a cleaner instrument panel. Vehicle settings can be customized according to personal preference, including personal door-lock preferences, interior/exterior light adjustments, driver’s seat easy exit, and window-closure settings.

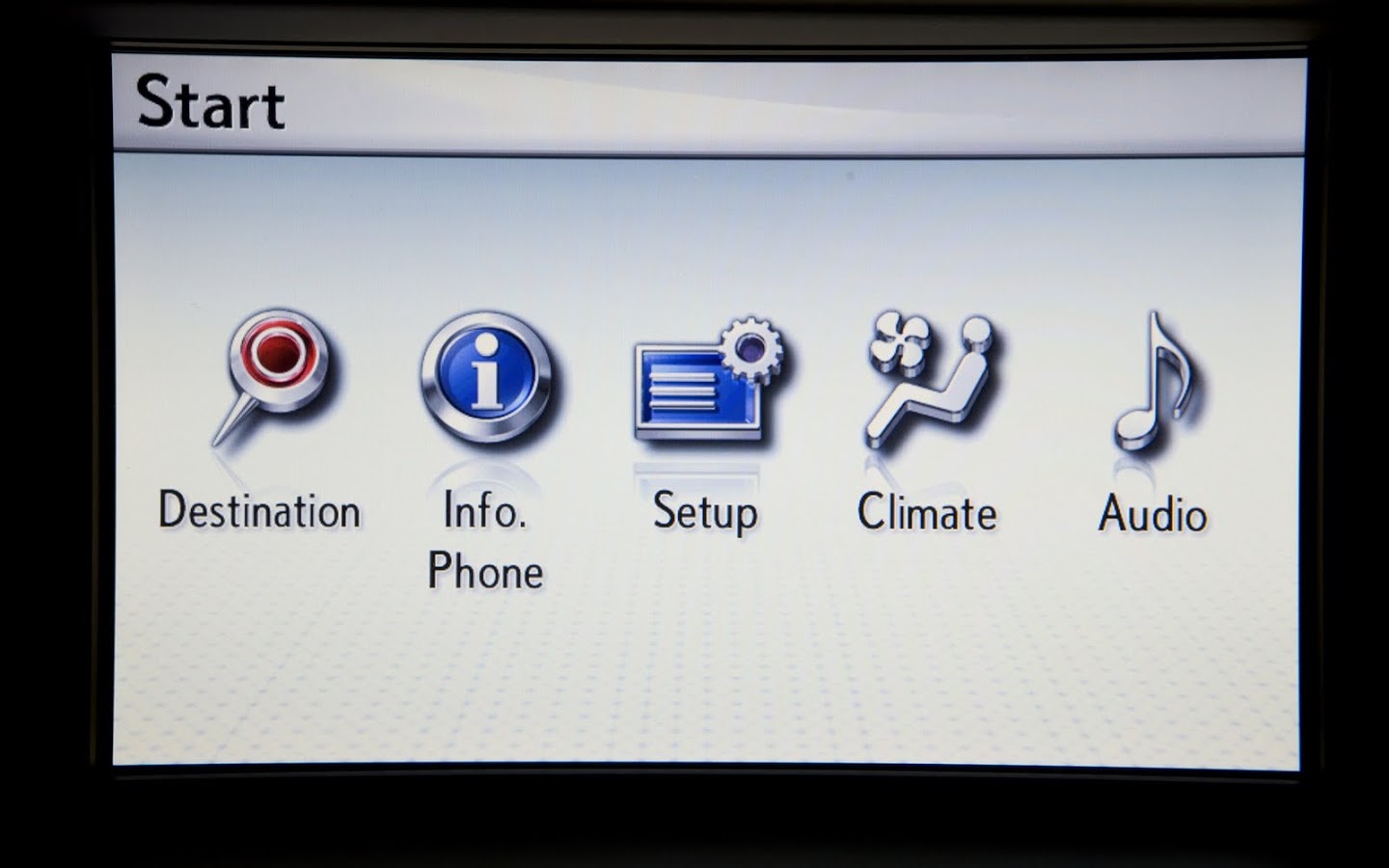

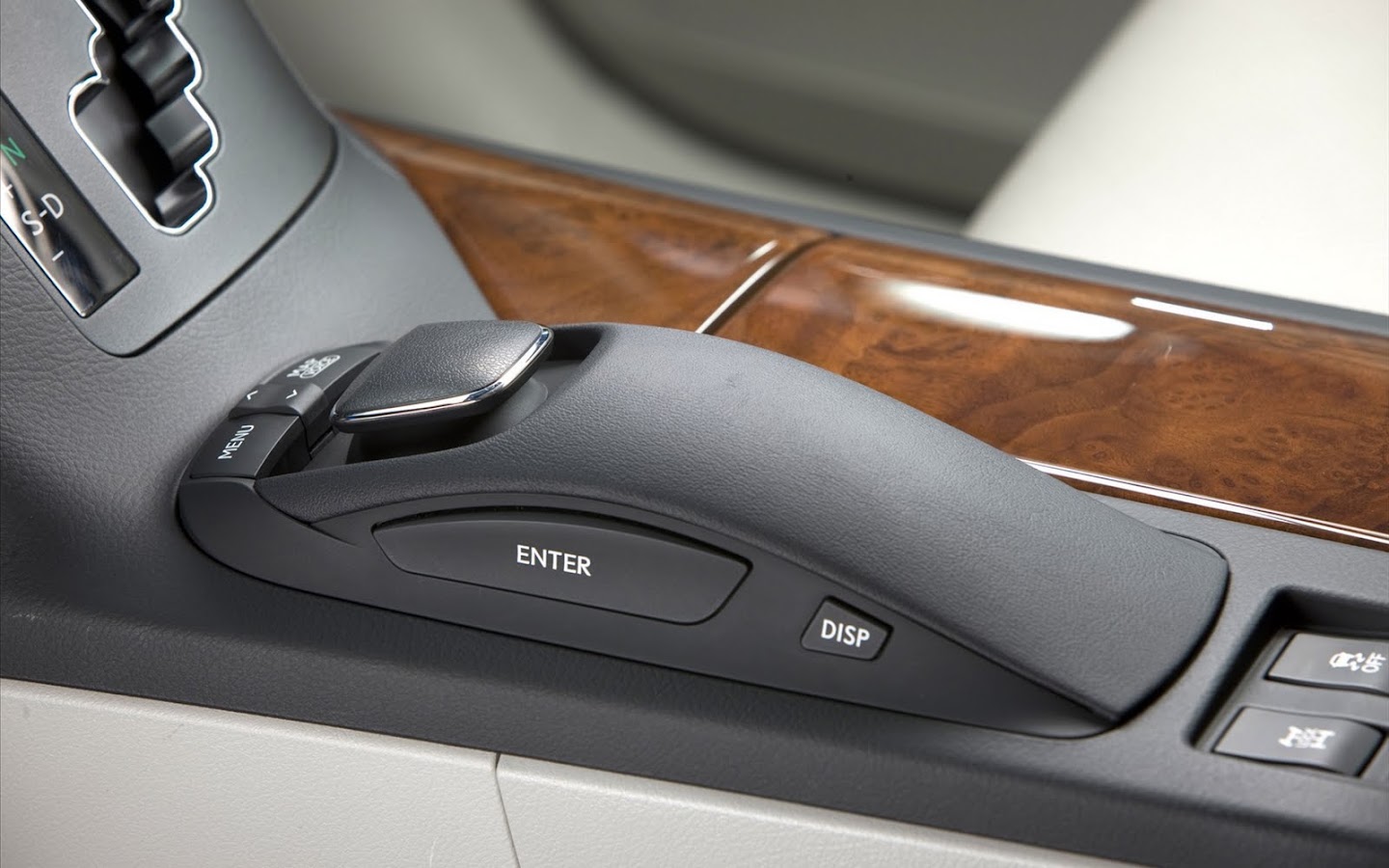

The available navigation system can be controlled using either the Remote Touch device or by utilizing voice command. Remote Touch allows the user to operate the navigation system, climate, audio, phone controls and more. The screen menus are selected with the controller, eliminating the need to reach out and reducing eye movement.
The attribute that most distinguishes Lexus’ navigation controller from other devices in other luxury models is its “haptic”-feedback technology, which provides a tactile response to the hand. As the user operates the controller near a screen icon, the cursor is pulled to that icon with feedback from a servomotor in the device enabling the user to feel it “click” into place. The driver or passenger makes a selection by pressing the side enter button on either side, and the feedback servo is adjustable for sensitivity. The system then confirms the action with a subtle sound. Remote Touch integrates the functions of seven hard switches used with the previous touch screen, helping users to operate those functions with reduced effort and distraction.

The available Heads-Up Display (HUD) utilizes white readouts. High-intensity LEDs project high-contrast white figures onto the windshield, which are easier to read – and easier on the eyes – than the typical green-colored readouts. The HUD offers displays for speed, navigation, and audio. A wedge-shaped windshield interlayer for the HUD projection area eliminates the distracting printed grid pattern seen on some other vehicles equipped with HUDs.

Warranty

All new Lexus vehicles come with a 48-month/50,000-mile basic limited warranty with roadside assistance for 48-months/unlimited miles. Powertrain and restraint system coverage is provided for 72 months/70,000 miles. Corrosion perforation protection is covered for 72 months, regardless of mileage. The hybrid-related components, including the HV battery, battery-control module, hybrid control module and inverter with converter, are covered for eight years/100,000 miles.
